SL-CV-B2

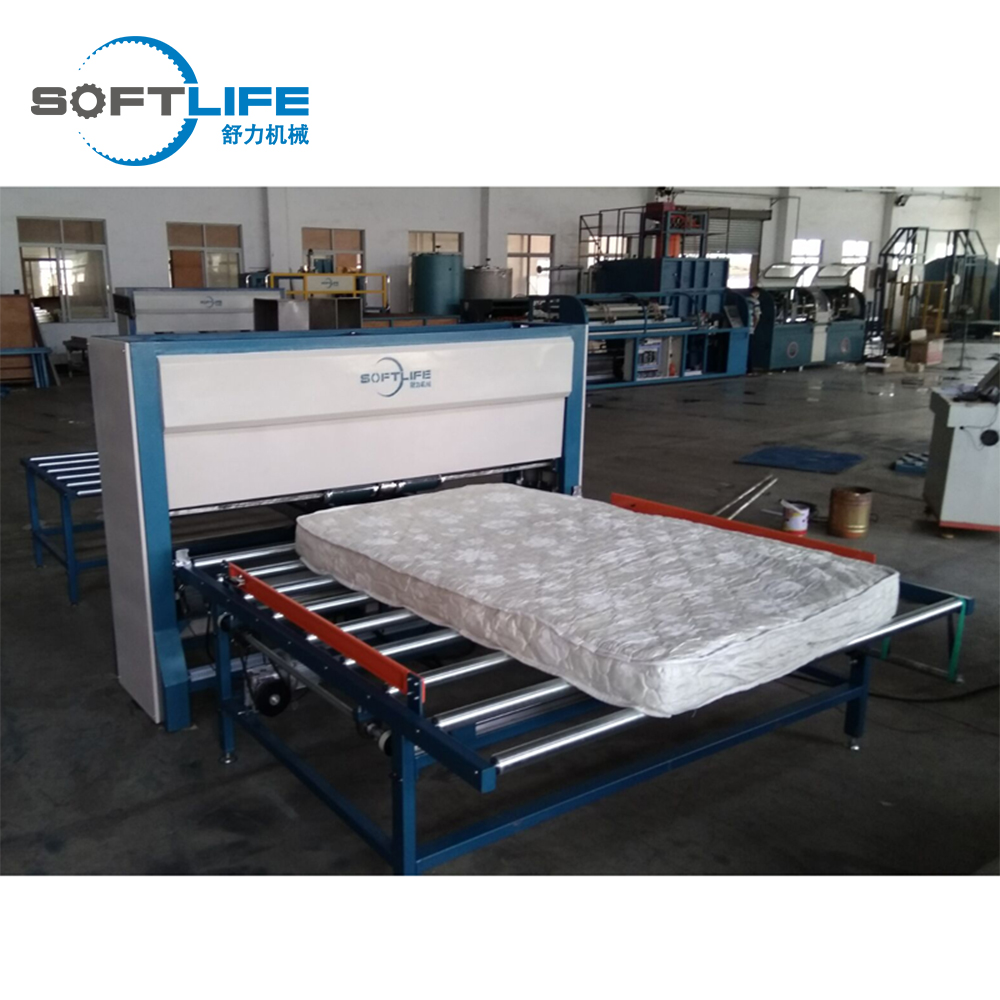

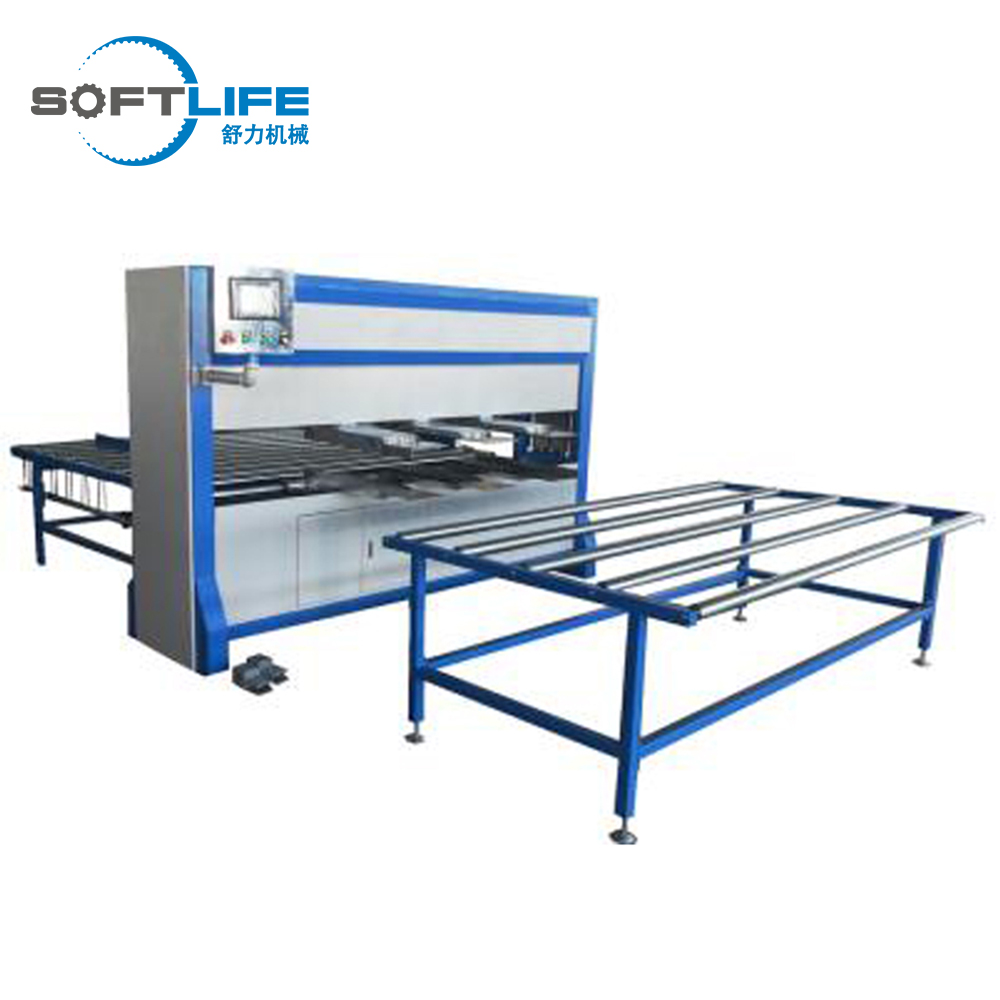

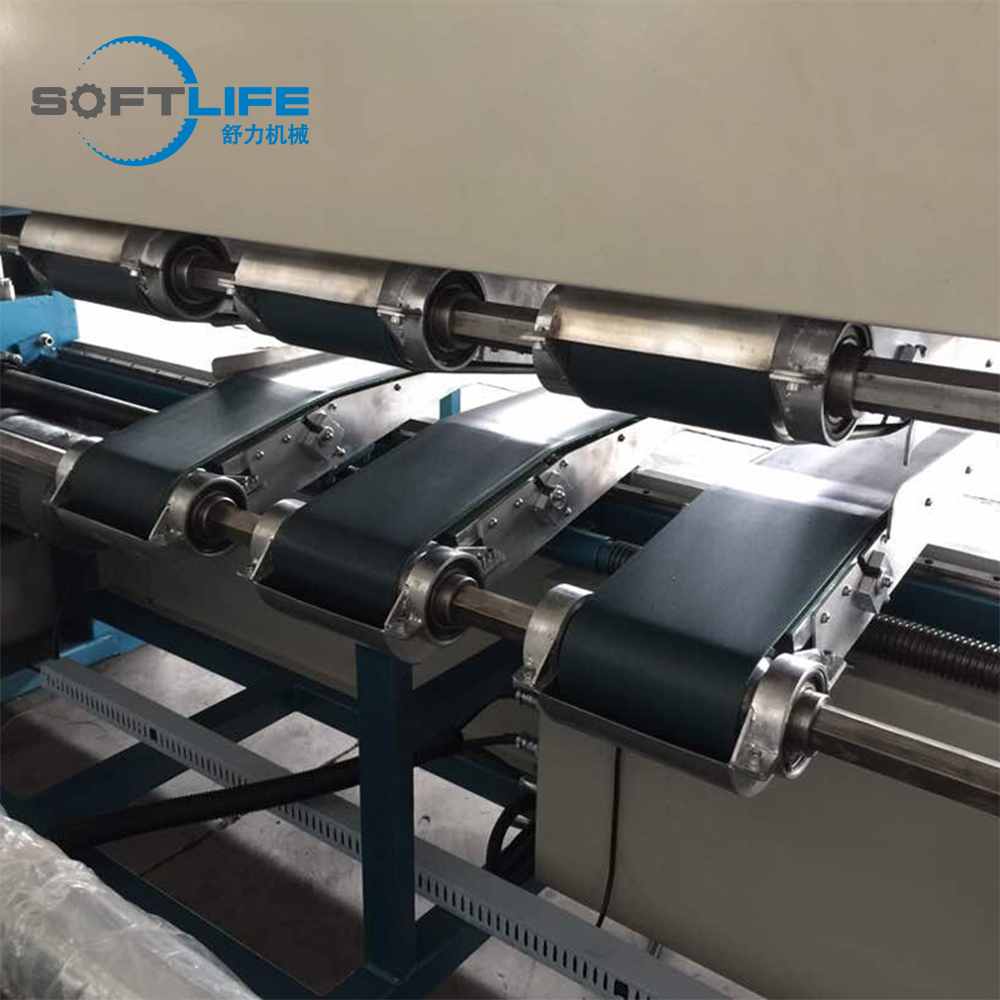

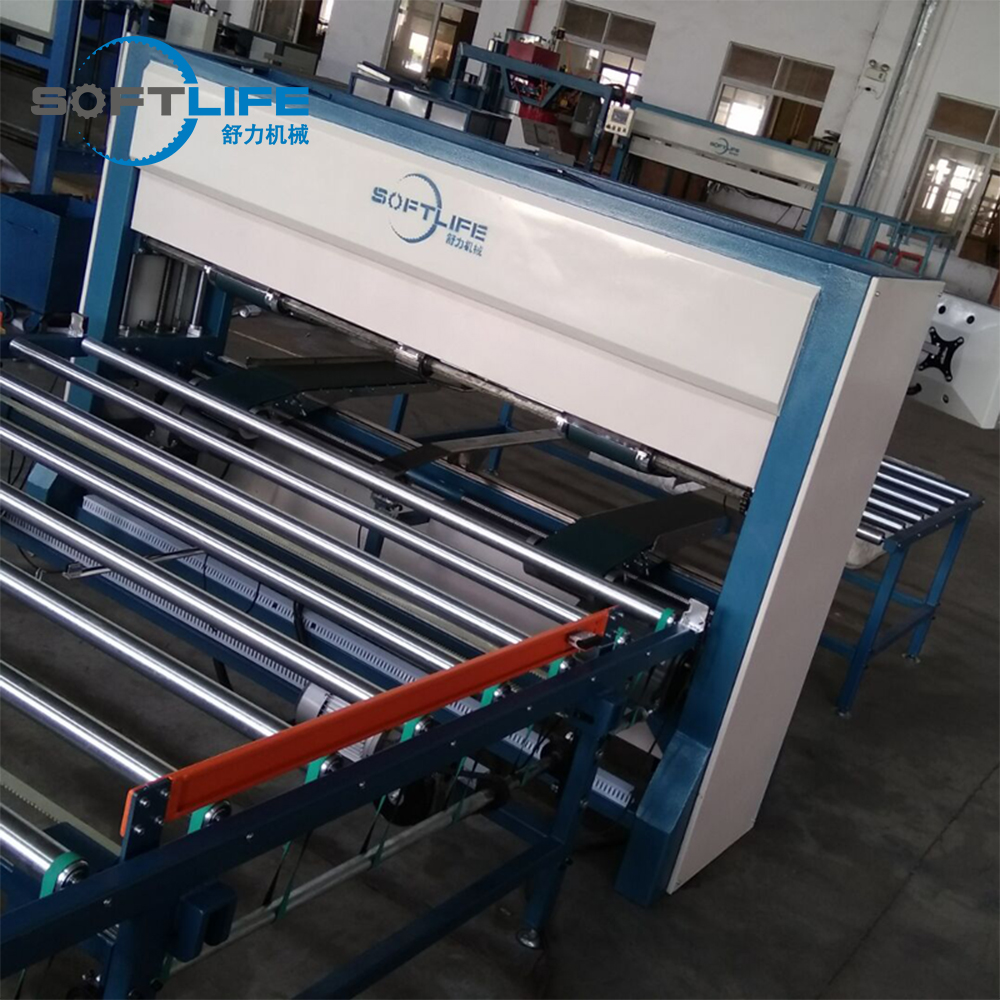

SL-CV-B2 is used for filling the cover of foam mattress and covering other similar mattress products by plastic. Adopted mode of belt conveyor, combined with the input table with motor and the output table without motor to finish the covering process. Both height adjustment and width adjustment are adopted electrical control, and also with the guide device driven by cylinders to make the covering mattress straight on the input table, make sure the mattress can be conveyed into the conveyor belts and cantilever arms straightly and smoothly. The operation of this machine is very simple because of the advanced programmable logical controller and the touch panel. This machine takes the advantages below: stable performance, easy operation, smooth conveying, steady running, high efficiency, low noise and so on.
Model | SL-CV-B2 |
Main body size | 2760(L)*1170(W)*1690(H)(mm) |
Input table size | 2360(L)*2000(W)*800(H)(mm) |
Output table size | 2360(L)*1200(W)*735(H)(mm) |
Mattress thickness | 100-380(mm) |
Mattress width | 930-2200(mm) |
Arm length | 430mm |
Filling speed | 20m/min |
Total weight | About 1500 kg |
Efficiency | 2 sheets /min |
Total power | 3.4 KW |
Air pressure | 0.6MPa |
Payment term:
1. L/C at sight;
2. T/T:30% deposit by T/T ,70% balance by T/T before shipment
3. Western Union
Packing detail:
*Pearl wood and PVC film
*All of the productions are inspected carefully by QC before delivery.
*
Trade Term: EXW,FOB Jiangmen,CFR
Delivery time:
By T/T, within 45 days after receipt of deposit
Min. Order:1 set
SL-CV-B2 is used for filling the cover of foam mattress and covering other similar mattress products by plastic. Adopted mode of belt conveyor, combined with the input table with motor and the output table without motor to finish the covering process. Both height adjustment and width adjustment are adopted electrical control, and also with the guide device driven by cylinders to make the covering mattress straight on the input table, make sure the mattress can be conveyed into the conveyor belts and cantilever arms straightly and smoothly. The operation of this machine is very simple because of the advanced programmable logical controller and the touch panel. This machine takes the advantages below: stable performance, easy operation, smooth conveying, steady running, high efficiency, low noise and so on.
Model | SL-CV-B2 |
Main body size | 2760(L)*1170(W)*1690(H)(mm) |
Input table size | 2360(L)*2000(W)*800(H)(mm) |
Output table size | 2360(L)*1200(W)*735(H)(mm) |
Mattress thickness | 100-380(mm) |
Mattress width | 930-2200(mm) |
Arm length | 430mm |
Filling speed | 20m/min |
Total weight | About 1500 kg |
Efficiency | 2 sheets /min |
Total power | 3.4 KW |
Air pressure | 0.6MPa |
Payment term:
1. L/C at sight;
2. T/T:30% deposit by T/T ,70% balance by T/T before shipment
3. Western Union
Packing detail:
*Pearl wood and PVC film
*All of the productions are inspected carefully by QC before delivery.
*
Trade Term: EXW,FOB Jiangmen,CFR
Delivery time:
By T/T, within 45 days after receipt of deposit
Min. Order:1 set
