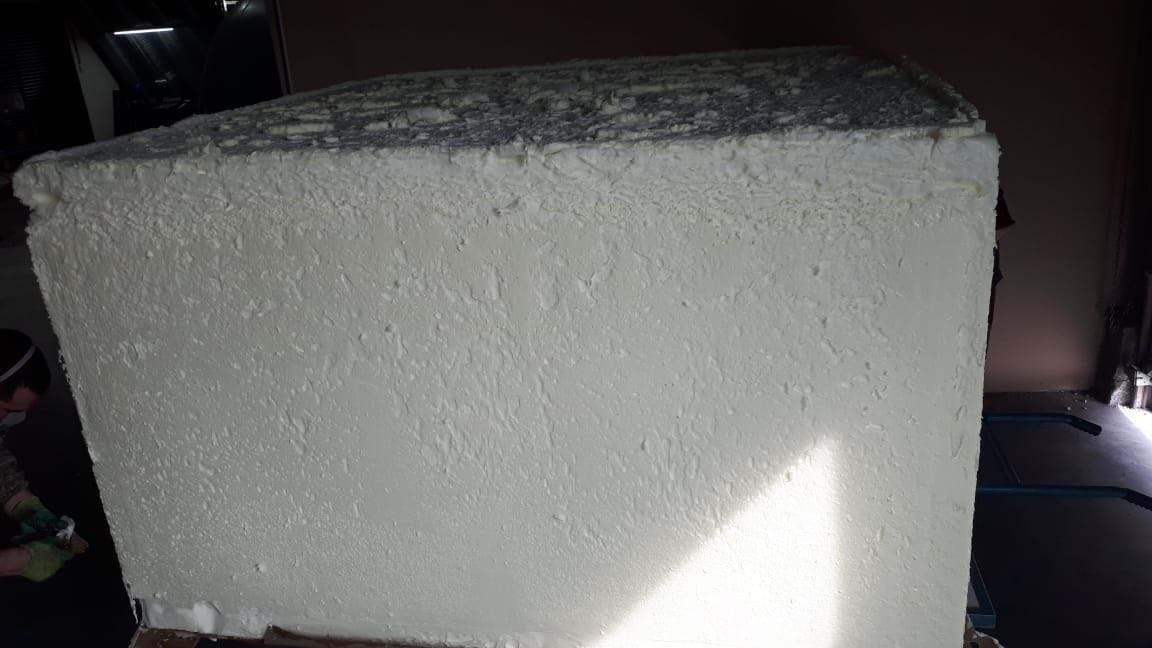

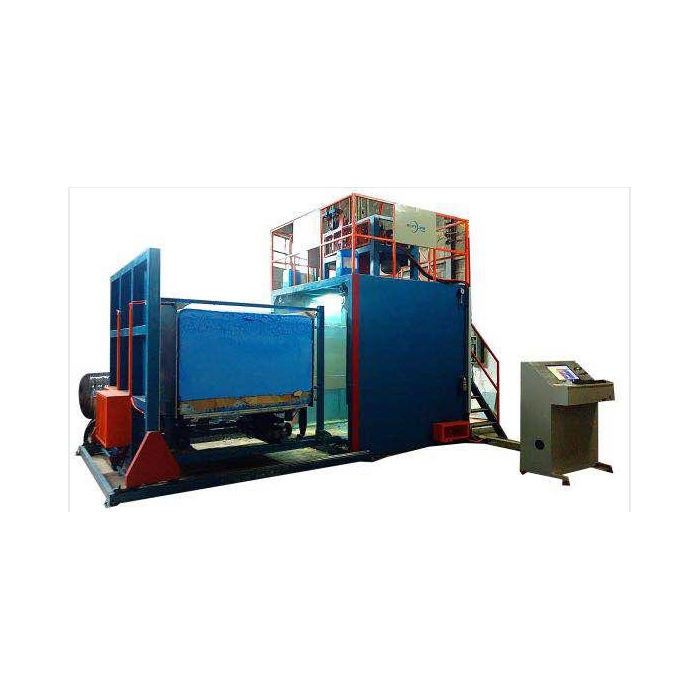

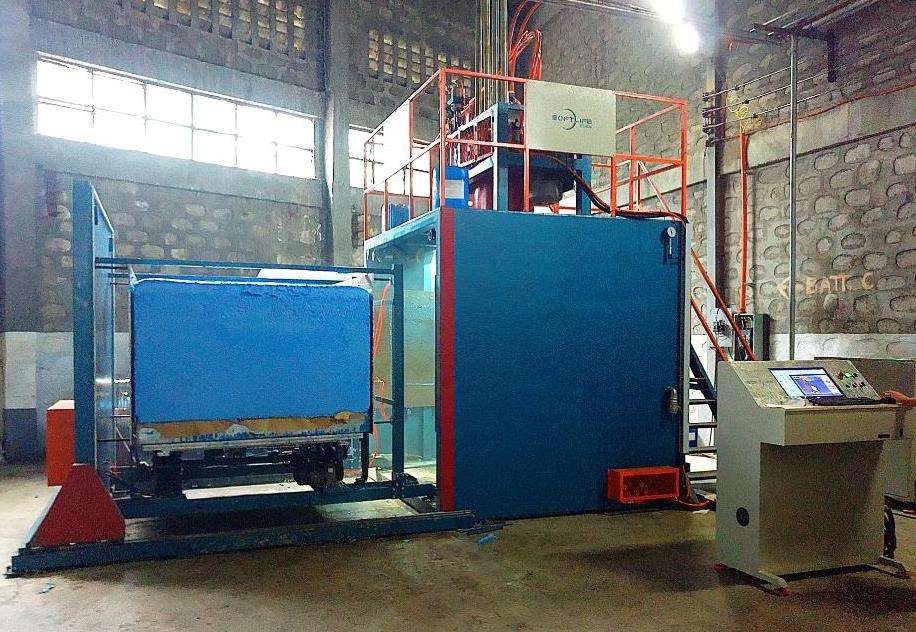

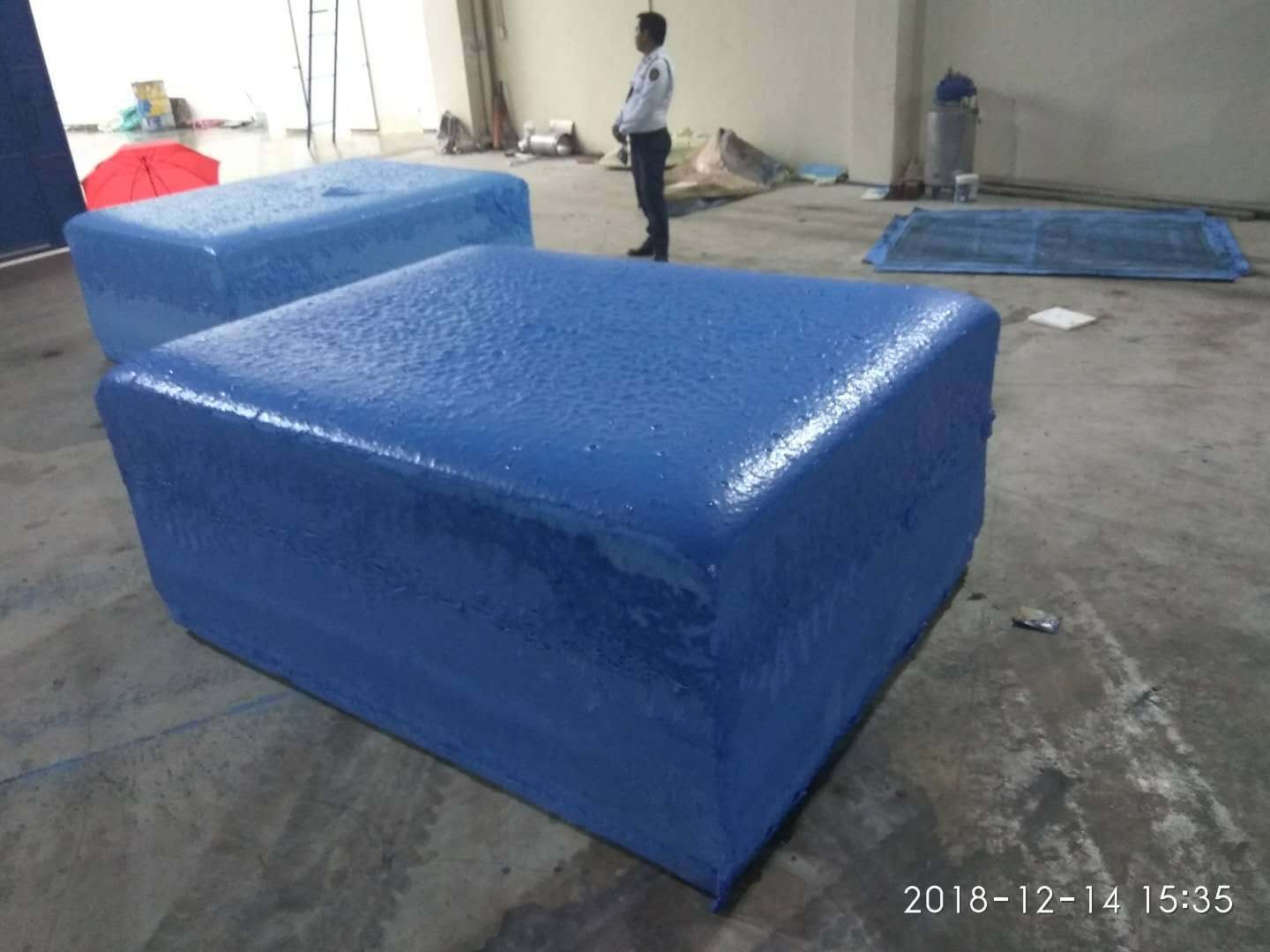

SL-VF-S Automatic vacuum foaming machine, adopt batching technology, foaming in vacuum condition. It is composed of storage tanks, batching, mixing, vacuum, mould, and computerized controlling systems. It can be realized numerical control during the whole production. It is used for making all kinds of foam.
Advantage:*Using the same pph of water, foaming density will be down: ≤30%
* Reduce the chemical consumption, and save the foaming cost: ≤20%
* Suction and filtrate the foaming air. Environmentalist.
* Scout the whole foaming by wired television.

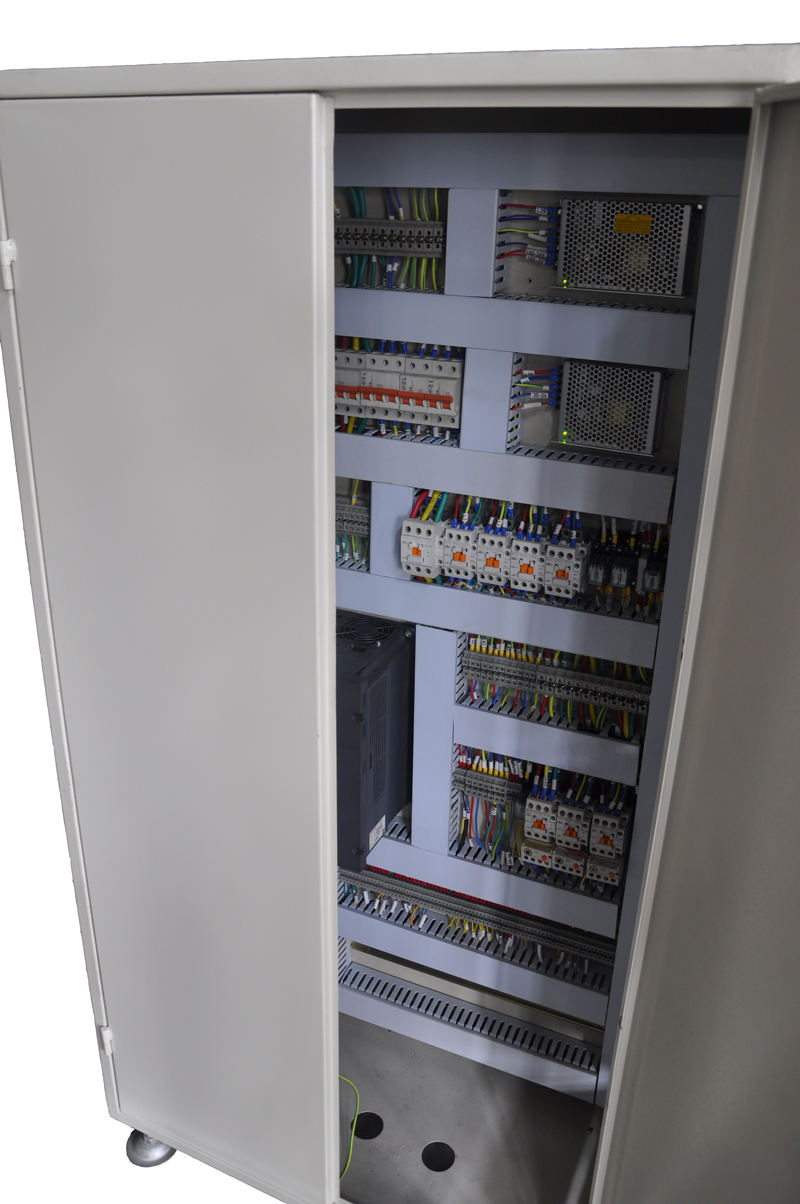

* It can be realized numerical control with accurate and convenient ration during the whole production. And it becomes more easily and stable to operate the machine.
Output | 1 block / 12min |
Chemicals | 8 Groups |
Mixer | 220 kgs |

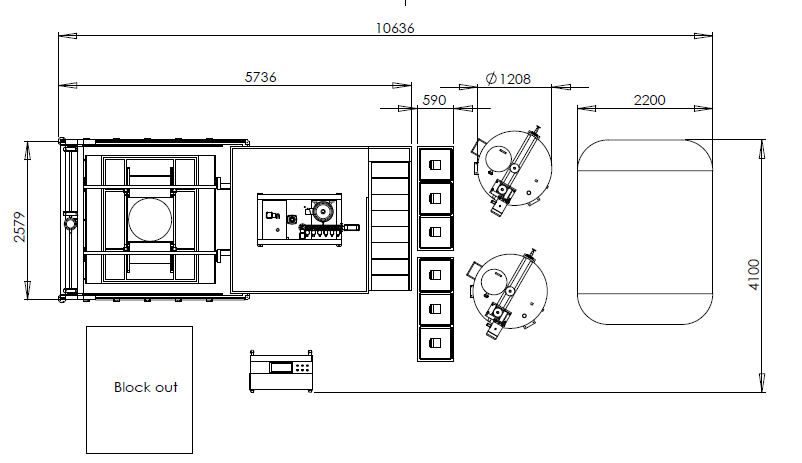

Mould size | 2090(L)x 2090(W)x 1200 (H) mm |
| 2090(L)x 1880(W)x 1200 (H); 2090(L)x 1580(W)x 1200 (H)mm |
Lifting platform speed | ≤3m/min ( Automatic regulation ) |
Max suction | 0.05Mpa |
Power | 42KW |
