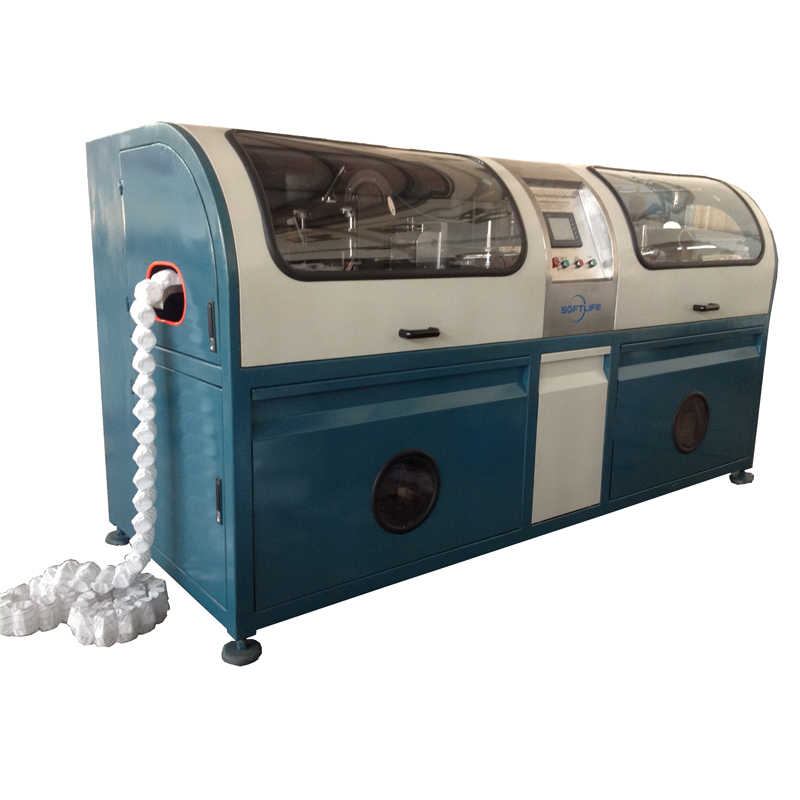

Automatic Mattress Making machine Pocket Spring Coil Machine
SL-12P Auto pocket spring machine is using in producing pocket spring for mattress and sofa. Adopt middle welding method, logically reduce the production processes, most movements of this machine adopt the high accuracy servo motor control. It works accurately, simple mechanism, fewer breakdowns. The machine with series protect function, it’s easy to maintain. ( With CE certificate )
Model | SL-12P-80 | SL-12P-120 | SL-12P-160 |
Spring height | 80~120mm | 120~180mm | 160~220mm |
Non-woven width | 300~400mm | 380~500mm | 460~580mm |
Non-woven thinness | 60-90g/m2 | 60-90g/m2 | 60-90g/m2 |
Spring diameter | Φ45-Φ60mm | Φ45-Φ70mm | Φ45-Φ70mm |
Steel diameter | Φ1.8-Φ2.2mm | ||
Max output | ≤70coils/min | ||
Air pressure | 0.6Mpa 15L/min | ||
Max power | 25kw | ||
Machine Dimension | 2930mmx1160mmx1470mm | ||
Wire holder | 1900mmx1100mmx1600mm | ||
Weight | 2300kg | ||
