Automatic PU Foam making machine

Automatic Batching foam machine retangle mould

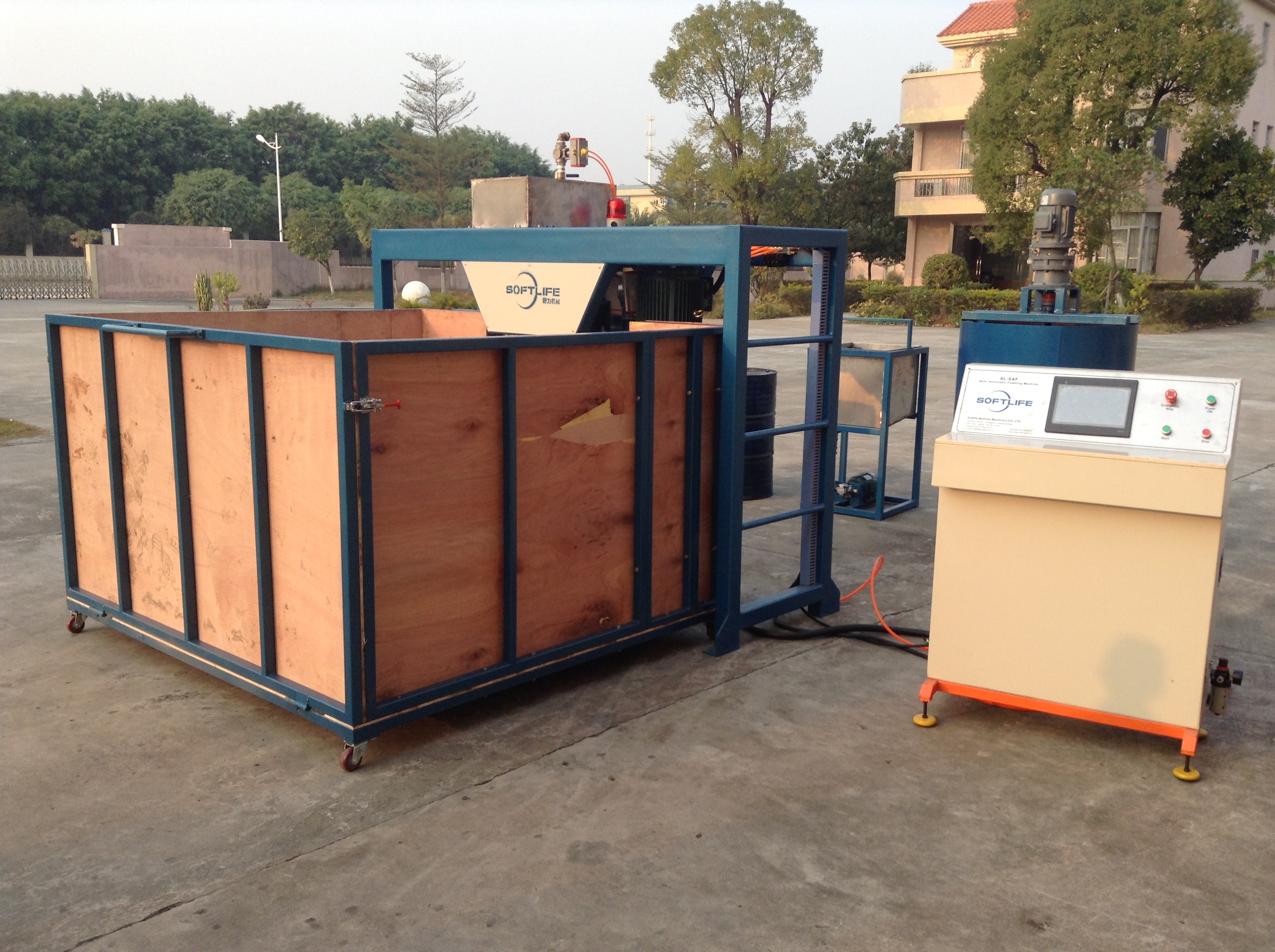

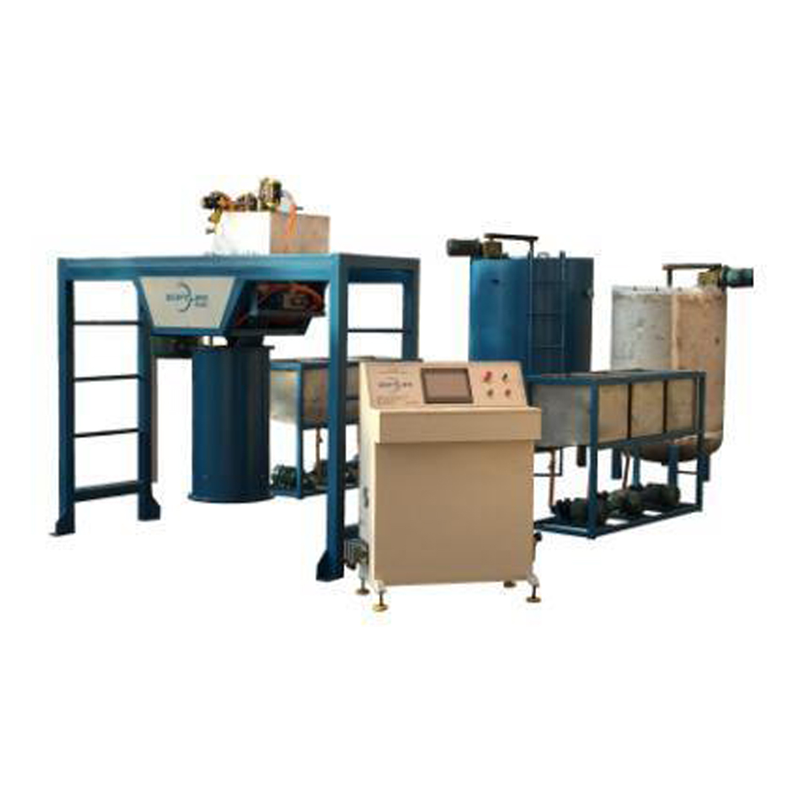

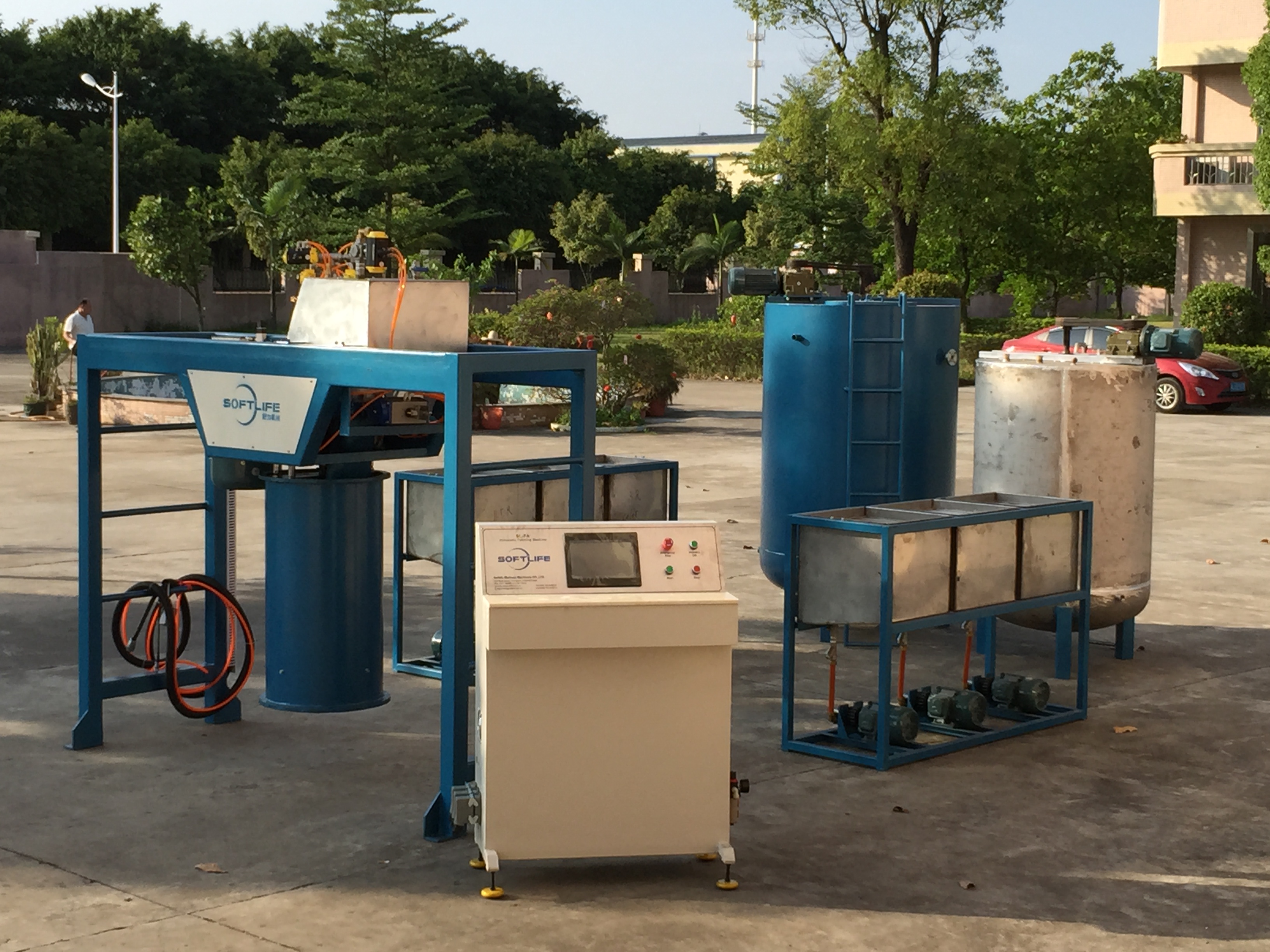

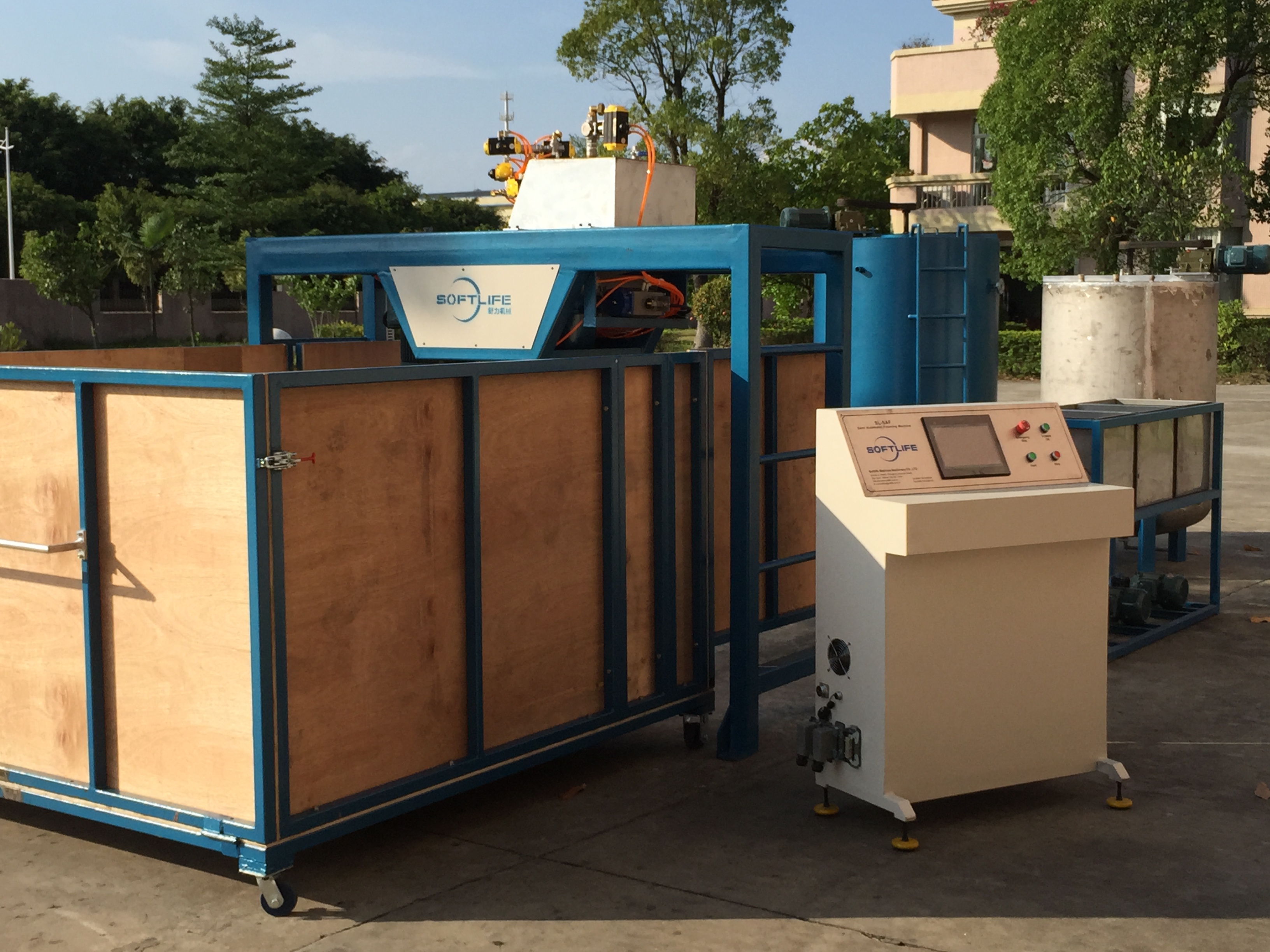

This machine is composed of a material storage system, the quantitative feeding system, mixing system, cleaning system, model cars, computer control system. All chemical raw materials supply the implementation of digital control. Feeding, stirring, feeding, the whole production process is automatically completed; quantitative accuracy, convenient operation; the labor intensity is low, the production efficiency is high. Is a small sponge foam factory, the best equipment. ( You don’t need to clean the mixing tank as it is with Teflon coat ).

Technicalspecification :

Output 1 block / 5 min Chemical 8 Groups Max weight 250 kgs (with Teflon coat ) Max speed 2180 rpm Total power 28.7 kw Weight 3300 kgs Mould size L2090 X W2090 X H1250 mm L2090 X W1850 X H1250 mm Dimension 6000(L) X 4000(W) X 3000(H) mm
