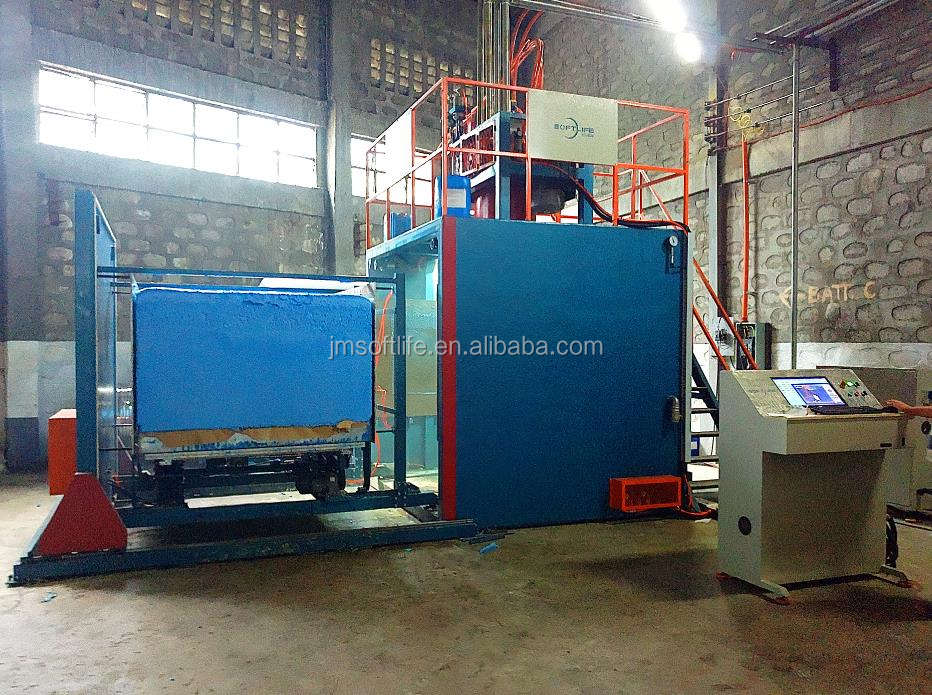

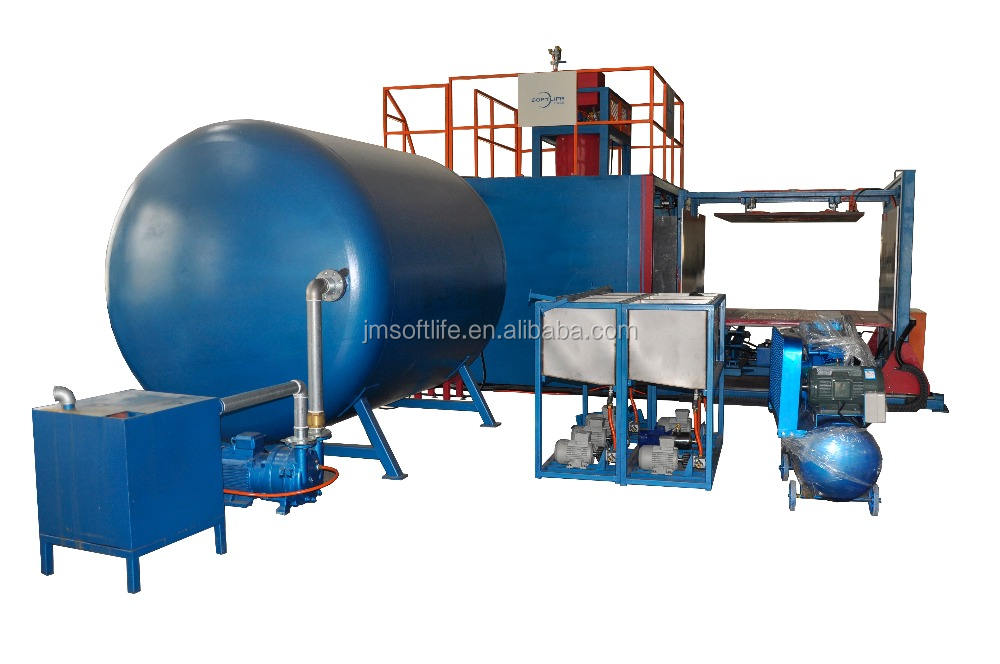

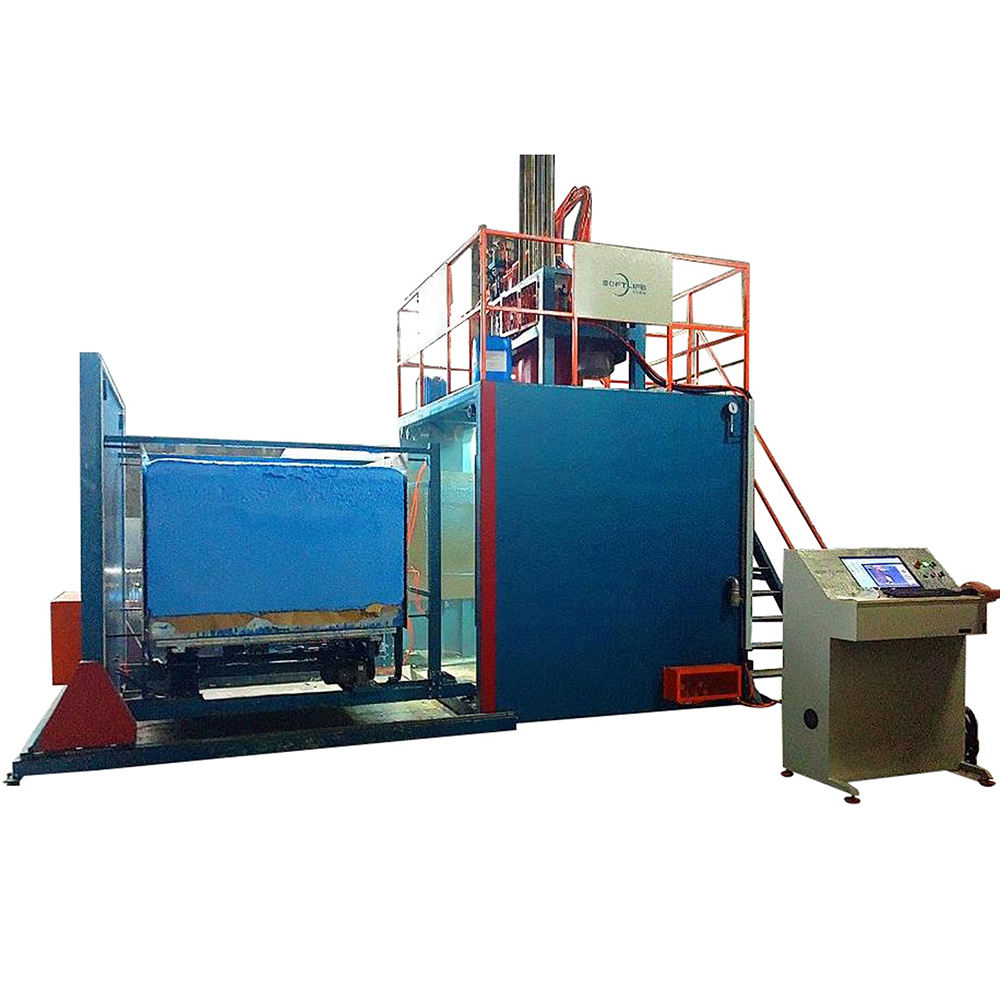

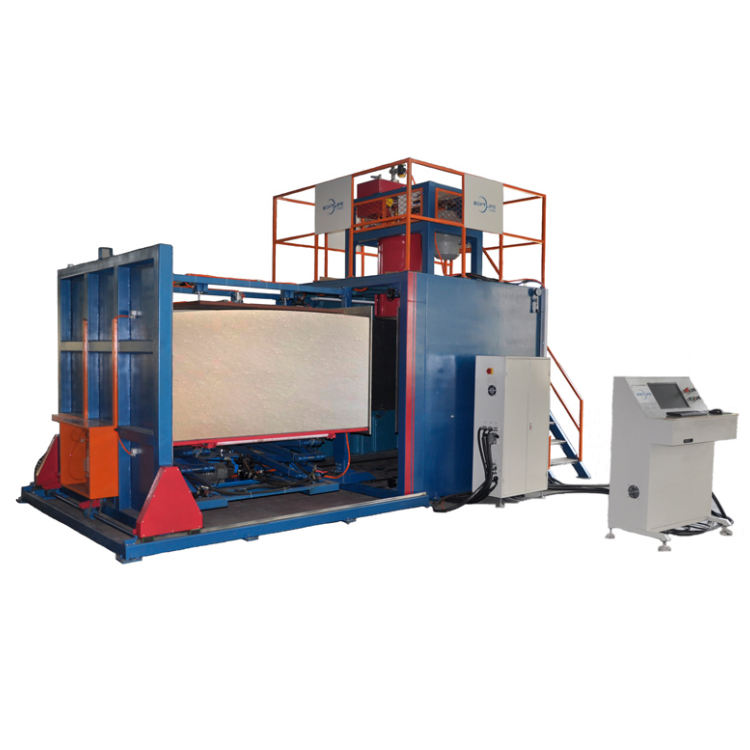

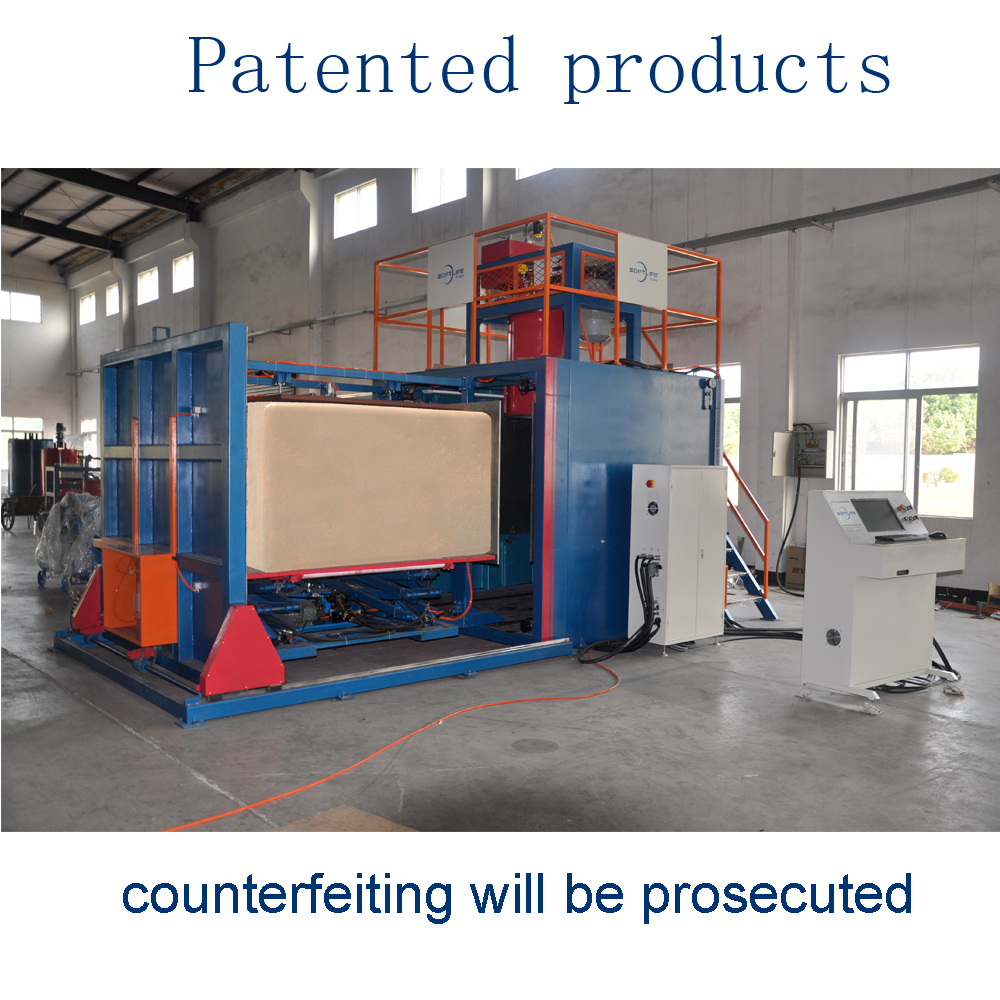

Automatic vacuum PU foam making machine
for production sponge
Auto vacuum PU foam making machine ( Vacuum polyurethan foaming machine automatically) , adopt batching technology, foaming in vacuum condition. It is composed of storage tanks, batching, mixing, vacuum, mould, and computerized controlling systems. It can be realized numerical control during the whole production. It is used for making all kinds of foam.
Advantage:
*The volume of the foam size can be 30% increasing at the same foaming formula.
* Reduce the chemical consumption and production cost.
* Suction and filtrate the foaming air. Environmental Protection.
* Monitoring the whole process of foaming by CCTV .
* Base plate can be Lifting automatically: it makes the sponge with uniform density and flat top by using this way.
* Easy cleaning function.
* It can be realized numerical control with accurate and convenient ration during the whole production. And it becomes more easily and stable to operate the machine
. * Continuous foaming.
* Flat top pressing device.(Additional)
Technical Specification:
| Model | SL-18VF |
| Output | 50 blocks / 8 hours |
| Chemicals | 11 Groups |
| Mixer | 220 kgs |
| Foam size | 2090(L)x1880(W)x1200(H) mm / 2090(L)x1580(W)x 1200 (H) mm/ 2090(L)x2090(W)x 1200 (H) mm |
| Working table speed | ≤3m/min |
| Maximum suction | 0.05Mpa |
| Compressing air | 12L-0.8Mpa/block |
| Power | 32KW |
We sincerely welcome friends from home and abroad to visit our company to negotiate the price and procurement further our discussion on the later cooperation.
