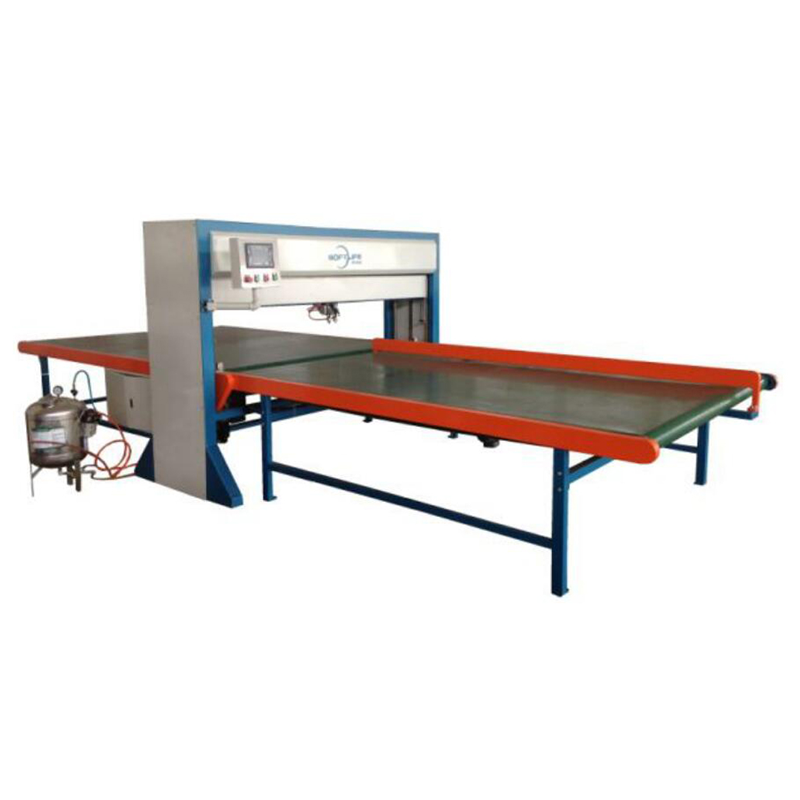

CNC HOTMELT GLUE Mattress machine gluing sprayer
This machine is mainly used for gluing the inner (or layers) of the mattress for lamination. The sprayers movement from side to side, and the belt of working table’s moving forward and backward are drived by servo motor, and controlled digitally. It has the advantage of flexible and various spray route, accurate spray position and high efficiency.
Technical specification:
Model | SL-13SG-2H | SL-13SG-2W |
Numbers of sprayer | 2 units | 2 units |
Glue type | Hot melt Glue | Water solution glue |
Total power | 7KW | 3KW |
Max width of mattress | 2000mm (Automatic regulation) | |
Max height of mattress | 400mm (Automatic regulation) | |
Max speed | 20m/min (Automatic regulation) | |
Overall dimension | 4500mm(L) x 2600mm(W) x 1600mm(H) | |
We sincerely invite friends from home and abroad to visit our company to negotiate the price and procurement further our discussion on the later cooperation.
