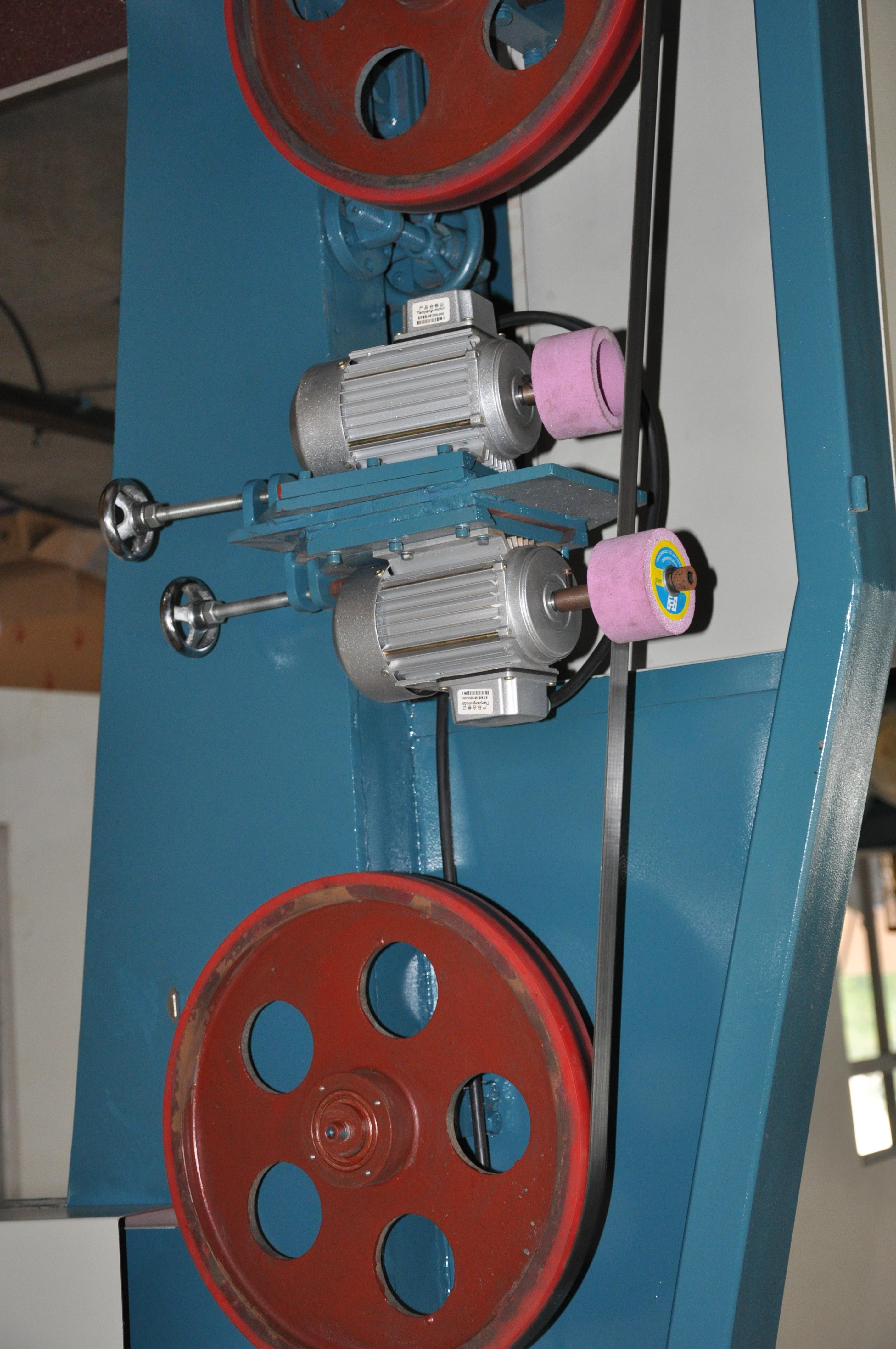

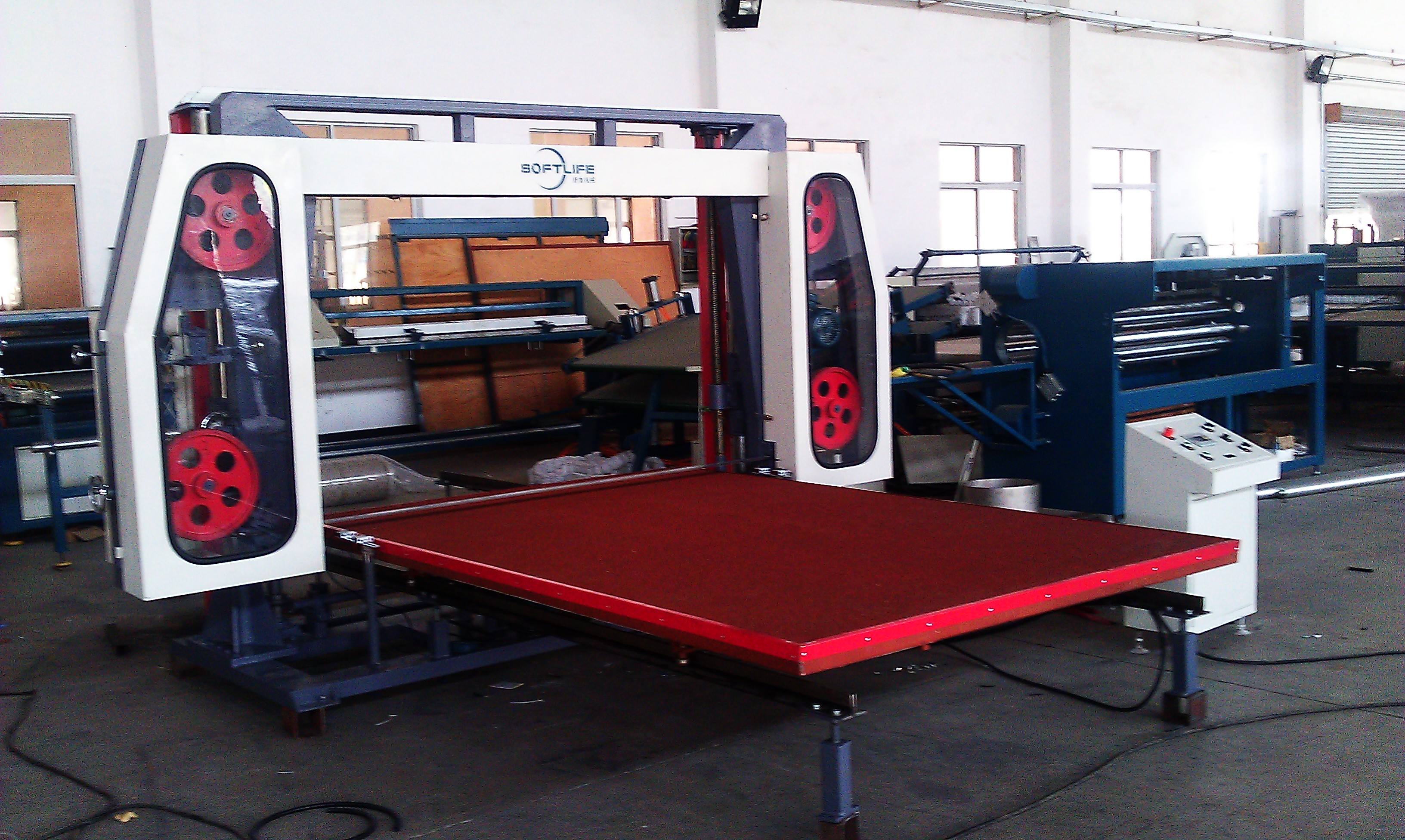

The machine is mostly used for shearing sponge block. Electronic control cutter can hold up and down, sending cutter and platform back and forth. Pressure shaft device ensures the stability of cutting. Auto shearing and picking up make the operation simple. It is the best equipment of high quality and efficiency. (Suction is optional)
Technical Specification:
Model | SL-HC |
Machine size | L6000×W3200×H2350mm |
Work table size | 2000×3000mm |
Max. cutting size | L3000×W2000×H1250mm |
Cutting thickness | ≥2mm |
Length of knife belt | 9080mm |
Precision | ≤1mm |
Max cutting speed | 12m/min (can be adjust) |
Control system | PLC |
Voltage | 3 phase AC 380V |
Power | 6.78KW |
Weight | 2700KG |
The machine is mostly used for shearing sponge block. Electronic control cutter can hold up and down, sending cutter and platform back and forth. Pressure shaft device ensures the stability of cutting. Auto shearing and picking up make the operation simple. It is the best equipment of high quality and efficiency. (Suction is optional)
Technical Specification:
Model | SL-HC |
Machine size | L6000×W3200×H2350mm |
Work table size | 2000×3000mm |
Max. cutting size | L3000×W2000×H1250mm |
Cutting thickness | ≥2mm |
Length of knife belt | 9080mm |
Precision | ≤1mm |
Max cutting speed | 12m/min (can be adjust) |
Control system | PLC |
Voltage | 3 phase AC 380V |
Power | 6.78KW |
Weight | 2700KG |
