SL-12P
Production description:

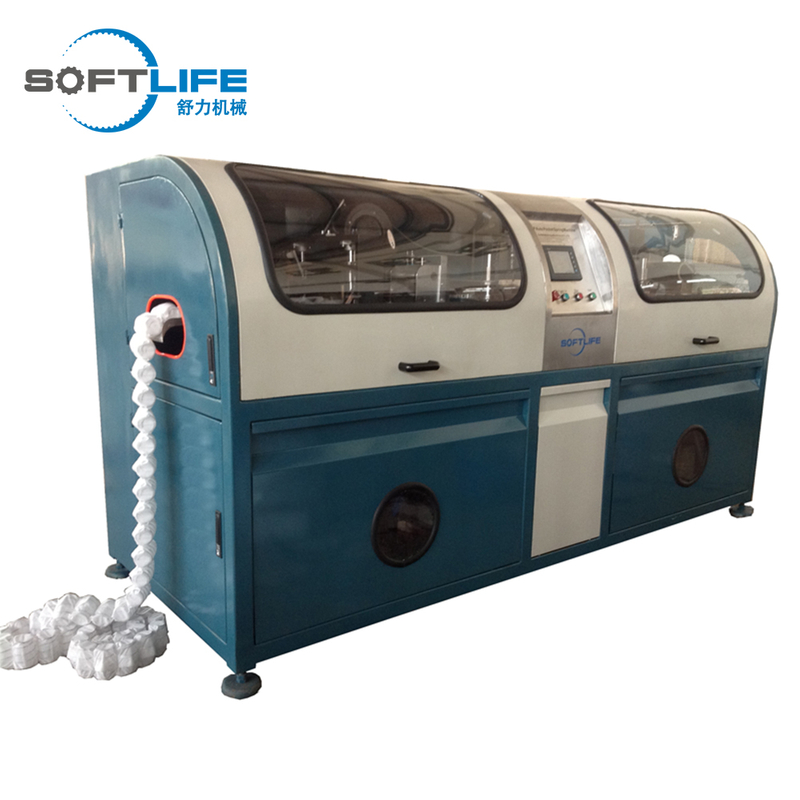

SL-12P Auto pocket spring machine is special using in producing small specification of pocket spring. Adopt middle welding method, logically reduce the production processes, most movements of this machine adopt the high accuracy servo motor control. It works accurately, simple mechanism, fewer breakdowns. The machine with series protect function, it’s easy to maintain.
Technical specification
Model | SL-12P |
Max output | ≤75coils/min |
Spring height | 100-150mm |
Non-woven width | 340-460mm |
Non-woven thinness | 60-90g/m2 |
Steel diameter | Φ1.8-Φ2.2mm |
Spring diameter | Φ45-Φ60mm |
Air pressure | 0.6Mpa 15L/min |
Max power | 25kw |
Machine Dimension | 2930mmx1160mmx1470mm |
Wire holder | 1900mmx1100mmx1600mm |
Weight | 2300kg |
Payment term:
1. L/C at sight;
2. T/T:30% deposit by T/T ,70% balance by T/T before shipment
3. Western Union
Packing detail:
*Pearl wood and PVC film
*All of the productions are inspected carefully by QC before delivery.
*
Trade Term: EXW,FOB Jiangmen,CFR
Delivery time:
By T/T, within 45 days after receipt of deposit
Min. Order:1 set
