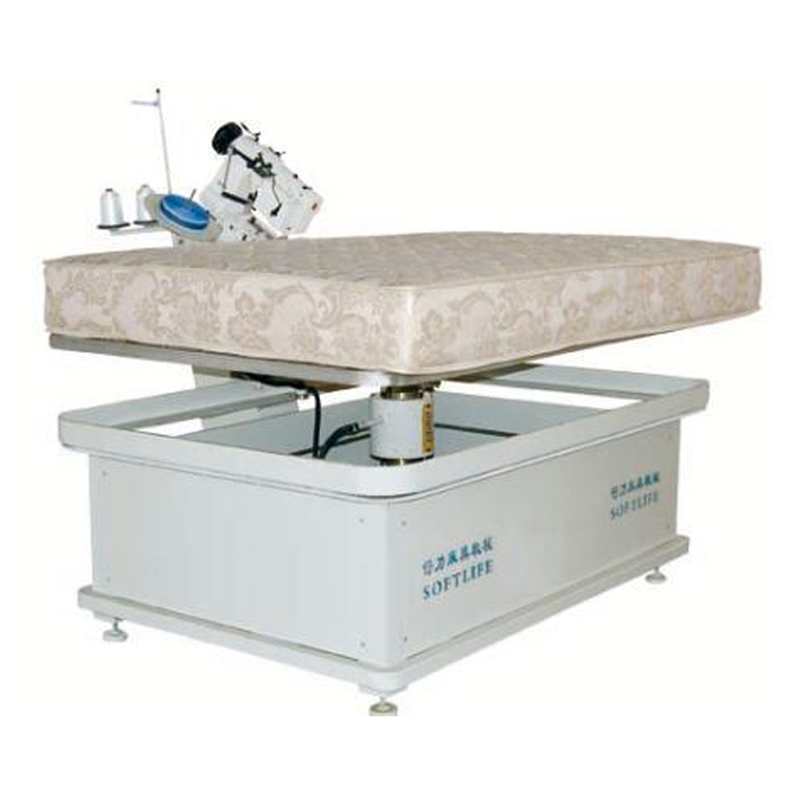

 Tape Edge Sewing Machine

This mattress embroidery machine’s working table is adopted high-strength independent bearing, stable working condition, motor upper and down the height of worktable. The rotary power supply is assembled in the machine. It is equipped with Singer-300U chain sewing head and microcomputer controlling system imported from America. It may change walking carriage’s turning speed automatically, which make mattress sewing operation more convenient, fast and the finished turn-flange more beautiful.

Technical Specification:

Model	SL-E
Speed of corner	1-6.8m/min (adjustable)
Working angle of sewing head	30°-55°
Speed of sewing	6.5m/min(adjustable)
Mattress Thickness	100-300mm
Lifting range of worktable	140 mm
The whole machine dimension	1950×1420×1650mm
Worktable size	1420 X 1950 mm
Moving motor power	0.75KW
Motor-upper & down power	0.75KW
Working Voltage	3-phase AC 380V
Weight	520KG

We sincerely welcome friends from home and abroad to visit our company to negotiate the price and procurement further our discussion on the later cooperation.
