Computerized Quilting Machine/ Comforter Quilting Machine/
Blanket sewing machine(multi-needle)

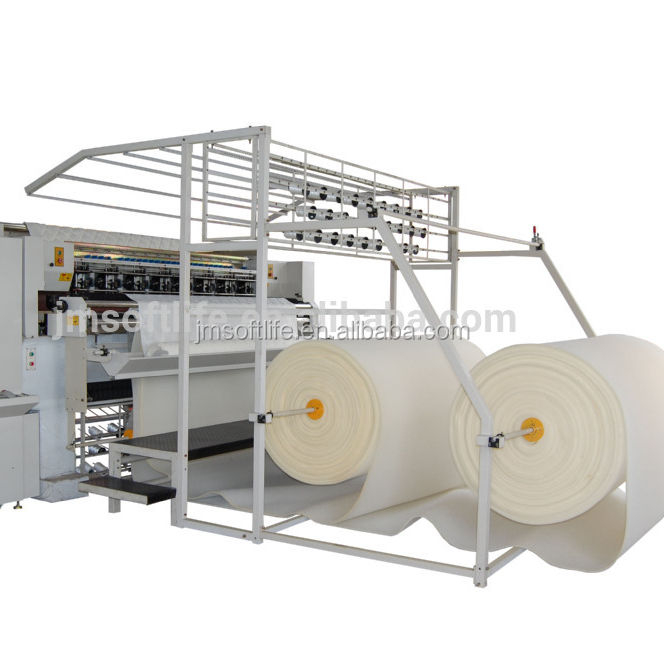

SL-W-JH Computerized quilting machine
| Parameter(Unit mm): |
|
| Dimension(L×W×H) : | 4800×1600×2000 |
| Quilting width: | 2450 |
| Space between needle rows: | 50.8,76.2,127(5”) |
| Space between needle rows: | 76.2,76.2,152.4(6”) |
| Space between needles: | 25.4 |
| X-axis movement displacement: | 410 |
| Thickness of quilting | ≤80(for all patterns) |
| Stitch length: | 3-8 |
| Speed of operation: | 60~230(m/hour) |
| Model of needle: | 24/180 23/160 22/140 21/130 |
| Quilting speed: | 200~900(RPM) |
| Total power required: | 7KW |
| Voltage : | 380V/50HZ 220V/60HZ |
| Gross weight: | 4500kg |
Detail Information:
• Needle bar and press plate are controlled by a double- swinging device without cam avoiding lubrication and dirtying of material
• Multi-span and independent patterns(360°and 180°patterns are available)
• Automatic stop motion control in case the top thread or the bottom thread breaks,automatic needle-lifting and CNC speed adjustment
• CE Certificate
• No need to adjust the press plate' s position when the thickness of quilting material varies
• Outstanding features such as high rigidity, high running speed, low vibration and noise
• CNC precision control system
• Easy preparation of CAD drawings extremely precise
• Strong functions of pattern-combining and multi-span quilting to enable you to quilt different patterns in each row in the mattresses of different sizes
• Fault detection function for ease of determining the running state of the machine at any given time
