Foam manufacturing has changed dramatically over the past two decades. What once required extensive manual labor and time-consuming batch processes can now be completed at scale, with greater precision and far less waste. At the center of this shift are high-performance foam conveying systems—machines that move, stabilize, and support foam materials through every stage of production.
For manufacturers producing polyurethane foam mattresses, cushions, or specialty foam products, the right conveying system is a make-or-break factor for overall production quality. A poorly designed line creates bottlenecks. A well-engineered one keeps every downstream machine running at full capacity.
This guide breaks down three core topics: the properties of polyurethane foam that make conveying it uniquely challenging, how foam continuous production lines are structured, and what to look for in a foam conveying machine. By the end, you'll have a clear picture of how these systems work together—and why they matter.
Polyurethane (PU) foam is a polymer material formed by combining polyol and isocyanate under controlled conditions. The reaction generates heat and causes the mixture to expand rapidly, creating a cellular structure that gives the material its characteristic softness, elasticity, and durability.
These same properties—rapid expansion, heat generation, and sensitivity to pressure—make PU foam particularly demanding to handle on a production line. During and immediately after foaming, the material is fragile. Uneven surface pressure can distort the foam's cell structure, leading to inconsistencies in density and firmness across the finished block.
This is why standard industrial conveyors are rarely sufficient. Foam conveying systems must:
Apply even, distributed pressure across the foam's surface during curing
Maintain a consistent travel speed that matches the foaming rate
Avoid mechanical stress points that could compress or deform the material
Support long foam blocks without sagging or misalignment
PU foam is widely used in mattresses, upholstered furniture, automotive seating, and packaging. Each application has its own density and hardness specifications, which means the conveying system must be adaptable enough to handle varying foam formulations without manual reconfiguration.
Foam Type | Typical Density Range | Common Application |
|---|---|---|
Soft PU Foam | 18–25 kg/m³ | Mattresses, pillows |
Medium PU Foam | 25–35 kg/m³ | Upholstered furniture |
High-Density PU Foam | 35–50 kg/m³ | Automotive seating |
Rigid PU Foam | 30–80 kg/m³ | Insulation, packaging |
Understanding the specific foam grade being produced is the starting point for selecting the right conveying configuration.

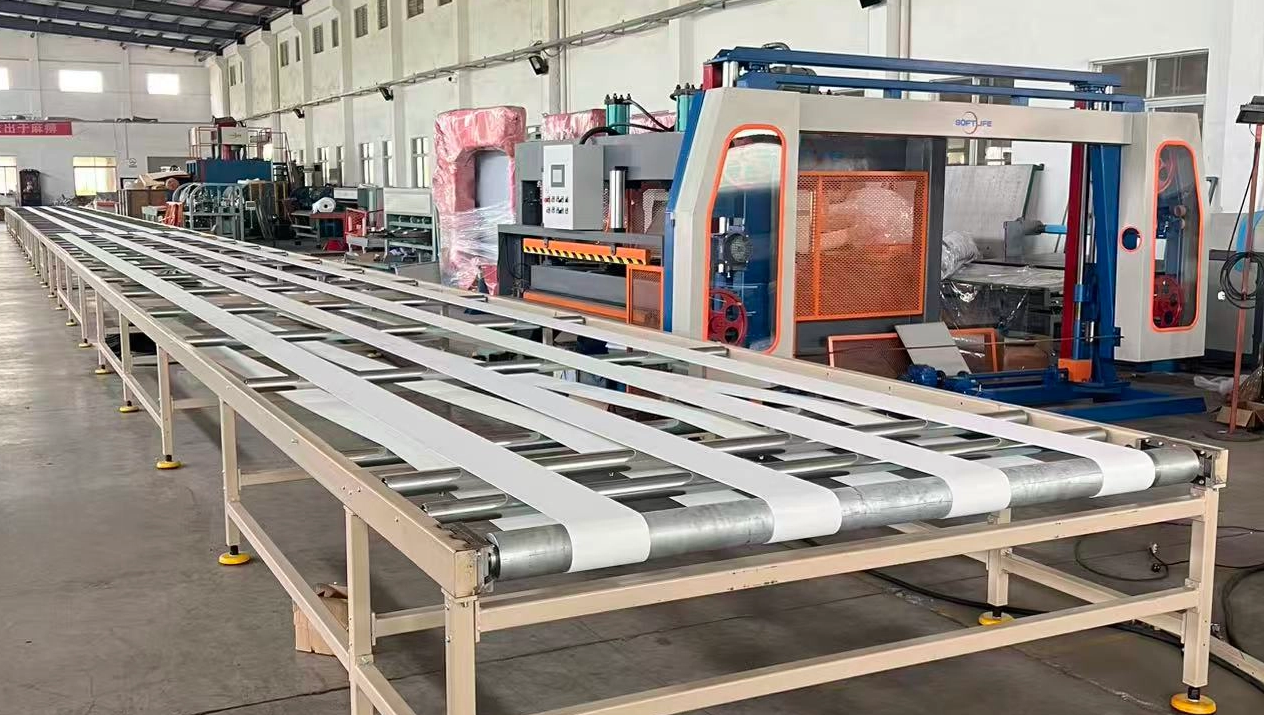

A foam continuous production line is an integrated manufacturing system where raw chemical components are mixed, poured, foamed, and transported in an uninterrupted sequence. Unlike batch foaming—where individual molds are filled one at a time—a continuous line produces an unbroken foam block (called a "bun") that can run for dozens of meters before being cut to length.
1. Chemical Dosing and Mixing
Polyol, isocyanate, and various additives are precisely measured using automated dosing systems. Accuracy at this stage directly affects the foam's final density and hardness. Auto batching machines are commonly used here to eliminate measurement error.
2. Pouring and Foaming
The mixed chemicals are poured onto a moving substrate—typically a paper liner—on the conveyor. The foaming reaction begins almost immediately. The foam rises vertically as it travels along the line.
3. Top Pressing and Shaping
To control the height and surface flatness of the rising foam, a top-pressing device is positioned above the conveyor. This ensures the foam block maintains a uniform profile across its full length.
4. Curing and Conveying
As the foam travels along the line, it cures and gains structural integrity. The conveying system must maintain precise speed and belt tension during this phase. Any variation can cause the foam block to develop uneven density gradients.
5. Block Cutting
Once the foam has cured sufficiently, it is cut into manageable block lengths for further processing or storage.
Continuous production lines are significantly more efficient than batch methods for high-volume manufacturers. A well-configured CNC continuous foaming machine, for example, can run with minimal operator intervention, reducing labor costs while improving output consistency.

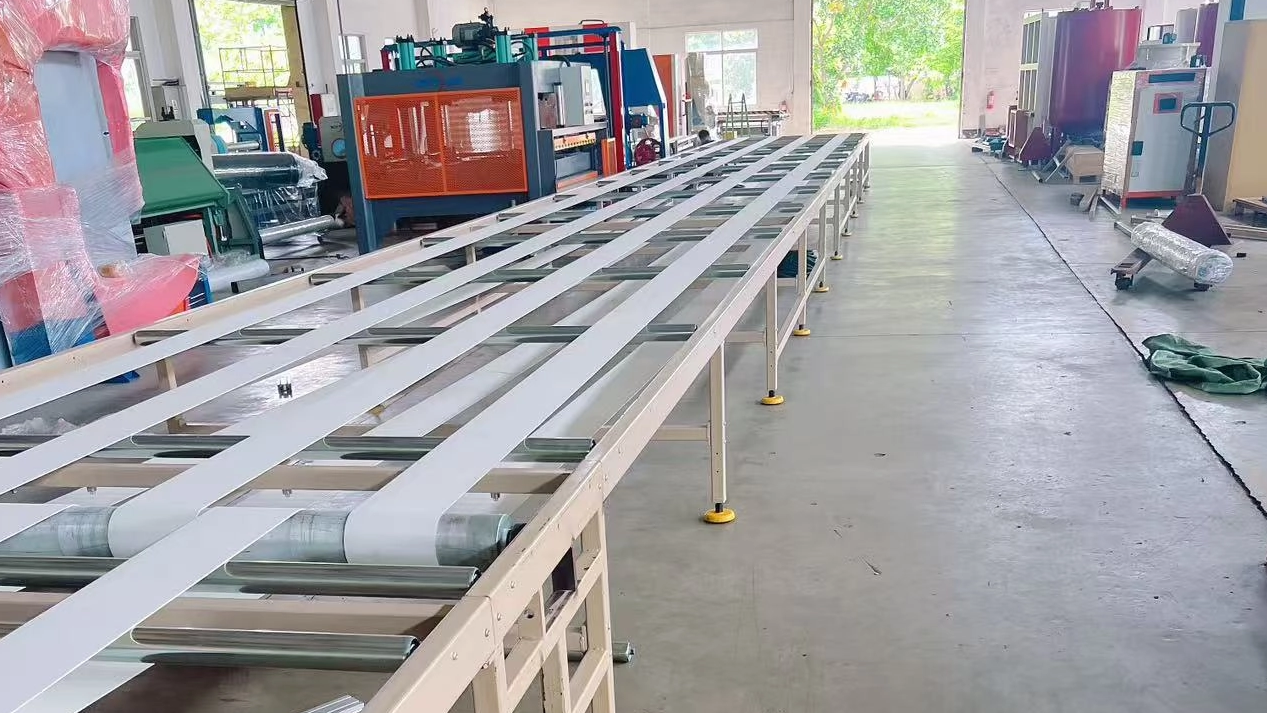

A foam conveying machine is the backbone of any continuous foam production line. Selecting the right one requires evaluating several technical and operational factors.
The conveying machine must match the foaming rate of the chemical reaction. Too slow, and the foam overflows or deforms at the pour point. Too fast, and the foam is pulled away before it has properly bonded. Variable-speed drive systems allow operators to fine-tune belt speed in real time, adapting to different foam formulations.
The belt must provide sufficient grip to move foam without slipping, while remaining gentle enough not to mark or compress the surface. For PU foam applications, flat-weave belts or laminated surfaces are common. The belt width must also accommodate the full width of the foam bun, typically ranging from 1.0 m to 2.2 m depending on production specifications.
Foam buns can extend 25–50 meters along a continuous line. The conveying frame must maintain precise horizontal alignment across that entire length. Any deviation causes the foam bun to drift, resulting in off-square cuts and material waste.
Different stages of the production process call for different conveyor configurations:
Straight Belt Conveyors – Used for linear foam transport between machines
Right Angle Conveyors – Redirect foam flow at 90° to optimize floor space
Motorized Rolling Conveyors – Provide controlled movement for heavier foam blocks
Upturned Conveyors – Used to flip foam blocks for bottom-side processing or inspection
Manufacturers like Softlife Mattress Machinery Co., Limited (www.softlife88.com) supply a range of mattress conveyor systems designed specifically for foam and mattress production environments, including motorized rolling conveyors, right angle conveyors, and straight belt conveyors.
A foam conveying machine rarely operates in isolation. It must interface with foaming machines at the input end and foam cutting machines at the output. Seamless integration—including matched belt heights, compatible control systems, and synchronized speeds—prevents foam damage at transfer points and reduces operator intervention.
The scale of your operation should guide your equipment selection. Smaller manufacturers may find that a semi-automatic batching system paired with a basic belt conveyor meets their needs. High-volume producers, on the other hand, benefit from fully automated CNC continuous foaming lines with integrated conveying, top pressing, and block cutting.
A useful rule of thumb: if your facility produces more than 500 foam blocks per month, the efficiency gains from a continuous line with integrated conveying justify the higher upfront cost when compared to batch-based systems.
High-performance foam conveyors are not an accessory—they are a core component of any well-designed foam manufacturing operation. From managing the delicate chemistry of polyurethane foam to synchronizing every stage of a continuous production line, the right conveying system directly determines product quality, throughput, and operational reliability.
Manufacturers evaluating their next equipment upgrade should assess the three pillars covered in this guide: the specific handling requirements of their foam formulations, the structure of their production line, and the technical specifications of available conveying machines. Getting these decisions right means fewer defects, less rework, and a faster path to consistent output at scale.
For more information on foam conveying machines, continuous production lines, and related foam manufacturing equipment, visit www.softlife88.com.
Foam conveyors are specifically engineered to handle the fragility and expansion behavior of polyurethane foam during and after the foaming reaction. Standard industrial conveyors are not designed to apply uniform distributed pressure or maintain the precise belt tension required for foam production.
Belt width depends on the foam bun dimensions being produced. For mattress-grade foam, belt widths typically range from 1.0 m to 2.2 m. Manufacturers should confirm the maximum bun width their line will produce before specifying conveyor dimensions.
Conveyor speed must match the rate of the foaming chemical reaction. Mismatched speed causes surface deformation, density inconsistencies, or overflow at the pour point. Variable-speed drive systems allow real-time adjustments to maintain quality across different foam formulations.
Yes. Modern foam conveying machines are designed to integrate with CNC continuous foaming machines, auto batching systems, and downstream cutting machines. Proper integration requires matched belt heights, synchronized control systems, and compatible transfer points.
Routine maintenance typically includes belt tension checks, drive motor lubrication, frame alignment verification, and belt surface cleaning to remove foam residue. Manufacturers such as Softlife Mattress Machinery Co., Limited offer after-sales technical support to assist with ongoing maintenance requirements.
TL;DR: High-performance foam conveyors are specialized industrial systems used to transport polyurethane foam through continuous production lines. They improve output consistency, reduce manual handling, and are essential to modern foam manufacturing operations.
