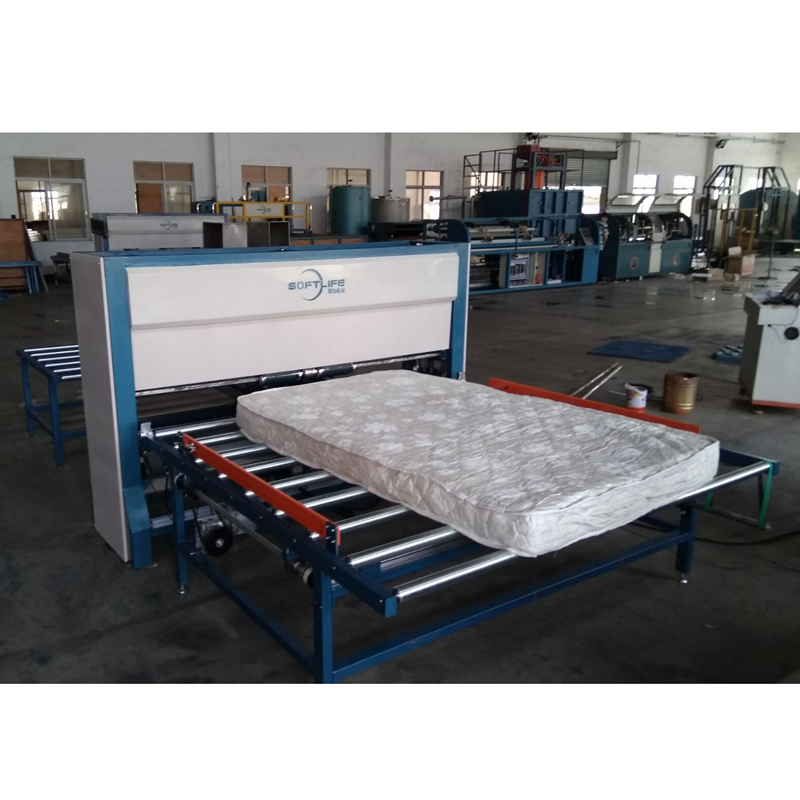

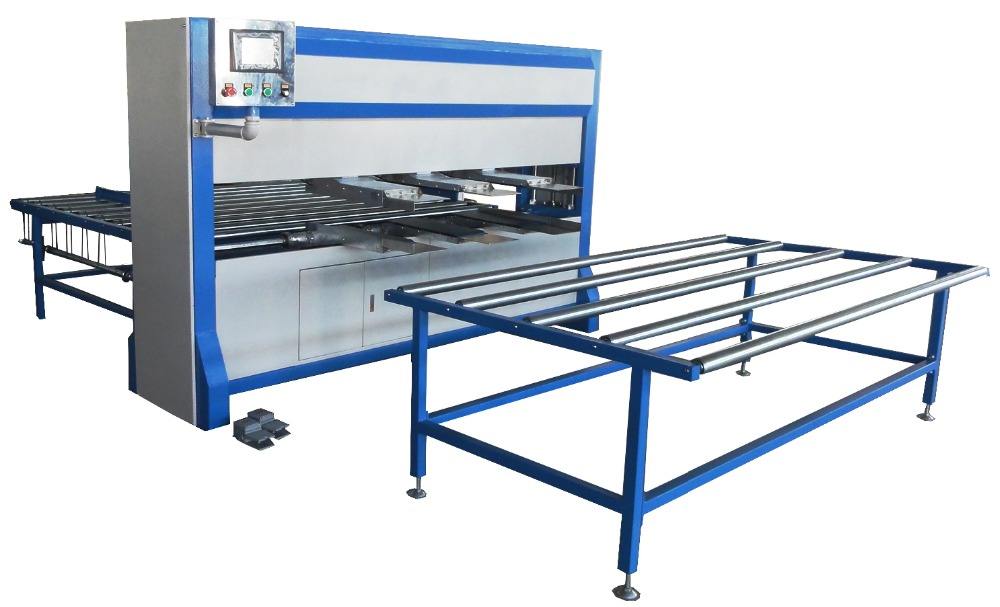

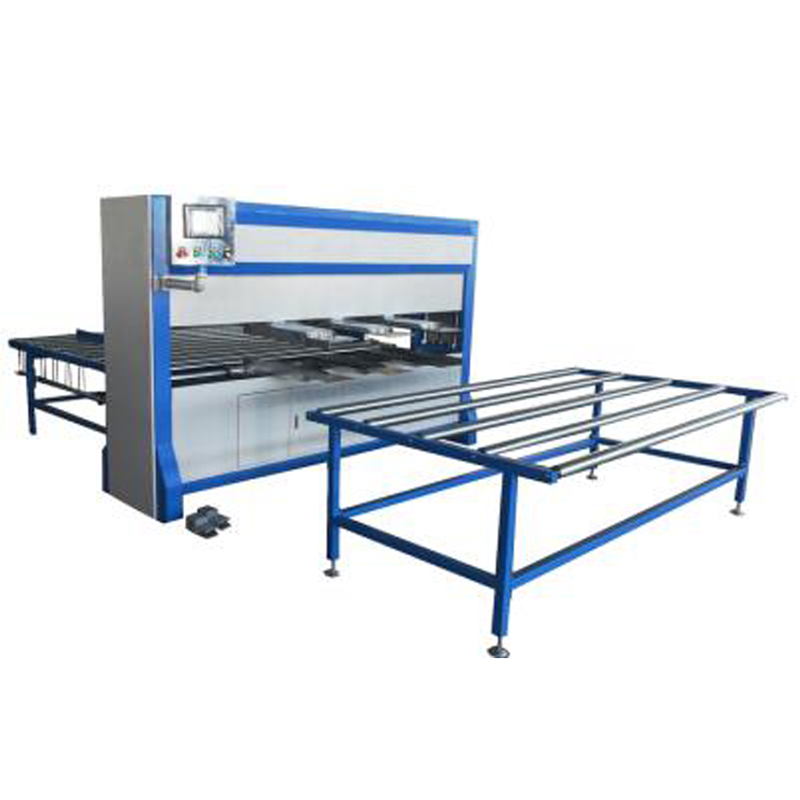

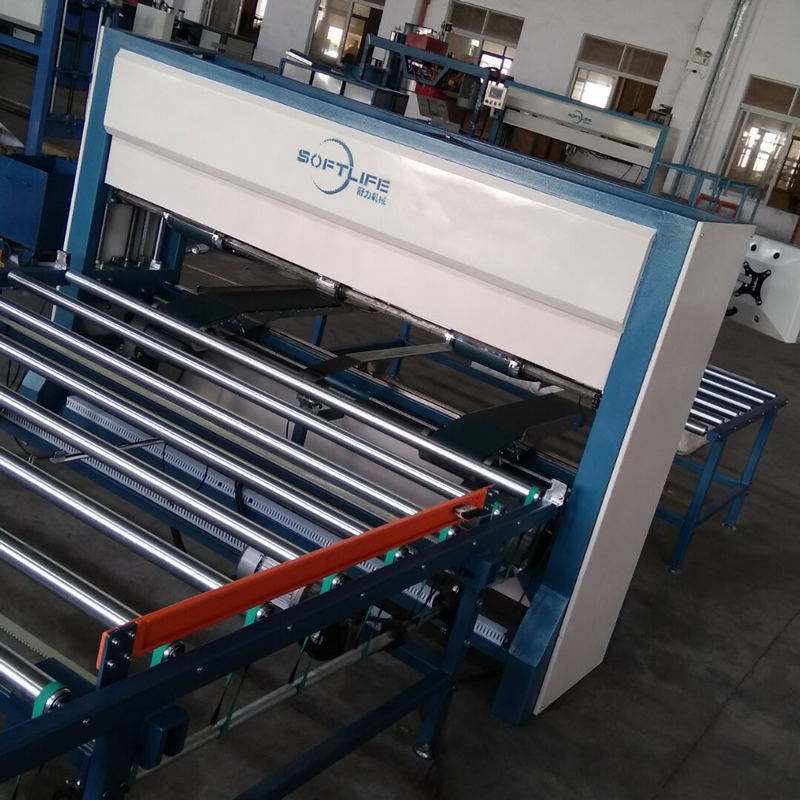

SL-CV-B3 Mattress Covering Machine

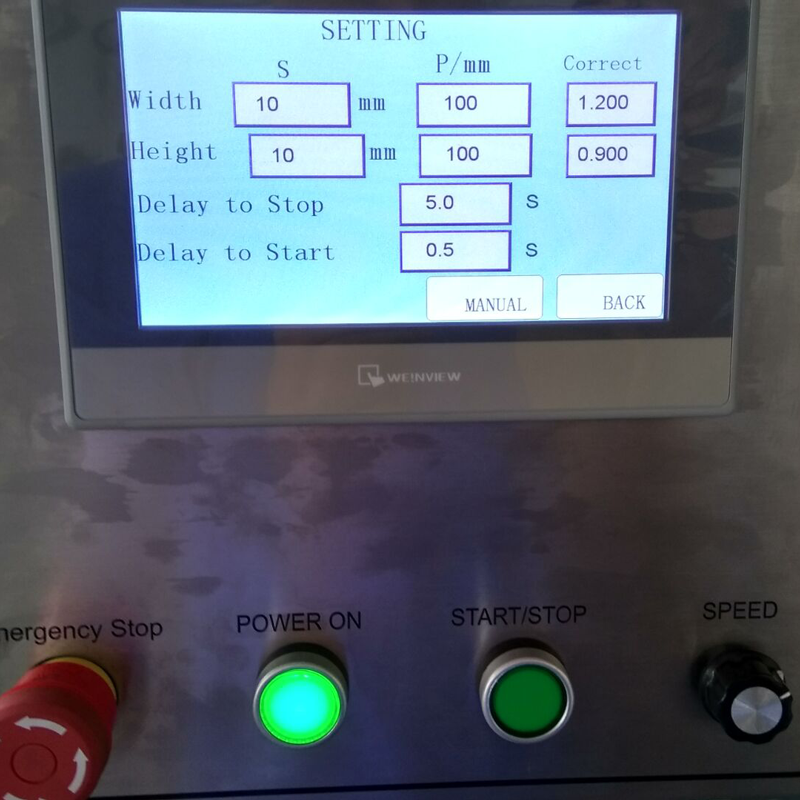

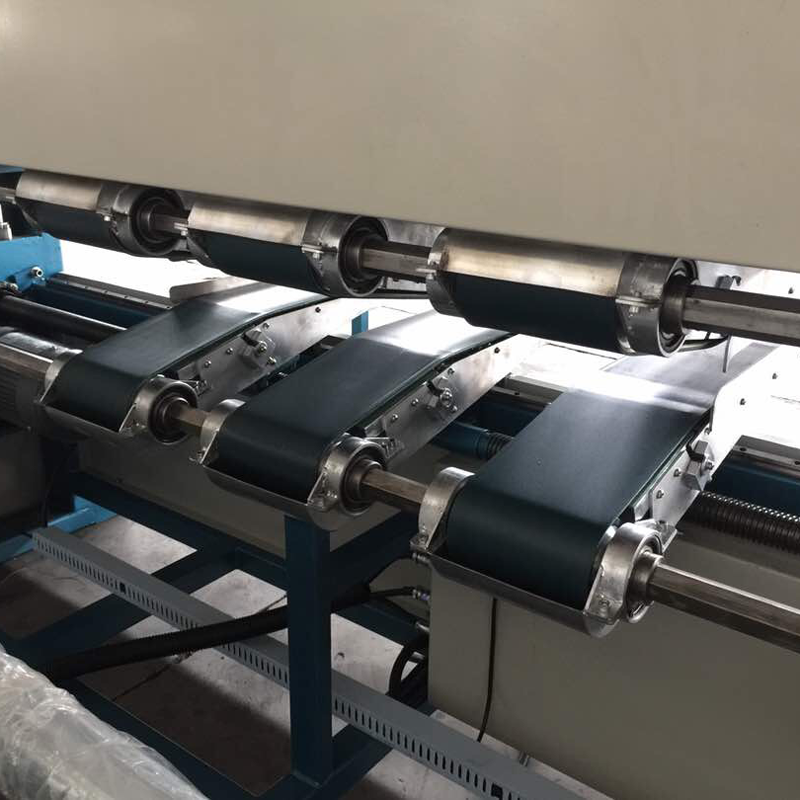

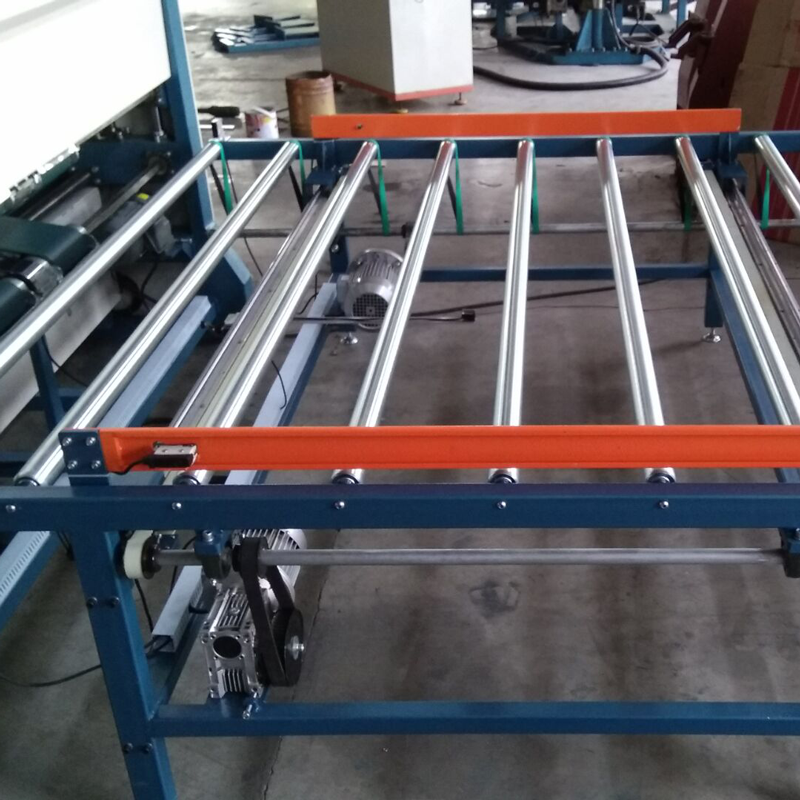

is used for filling the cover of foam mattress and covering other similar mattress products by plastic. Adopted mode of belt conveyor, combined with the input table with motor and the output table without motor to finish the covering process. Both height adjustment and width adjustment are adopted electrical control, and also with the guide device driven by cylinders to make the covering mattress straight on the input table, make sure the mattress can be conveyed into the conveyor belts and cantilever arms straightly and smoothly. The operation of this machine is very simple because of the advanced programmable logical controller and the touch panel. This machine takes the advantages below: stable performance, easy operation, smooth conveying, steady running, high efficiency, low noise and so on.
Model | SL-CV-B2 |
Main body size | 2760(L)*1170(W)*1690(H)(mm) |
Input table size | 2360(L)*2000(W)*800(H)(mm) |
Output table size | 2360(L)*1200(W)*735(H)(mm) |
Mattress thickness | 100-380(mm) |
Mattress width | 930-2200(mm) |
Arm length | 430mm |
Filling speed | 20m/min |
Total weight | About 1500 kg |
Efficiency | 2 sheets /min |
Total power | 3.4 KW |
Air pressure | 0.6MPa |
We sincerely welcome friends from home and abroad to visit our company to negotiate the price and procurement further our discussion on the later cooperation.
"No the best , Only Better" is our working target, we hope that our expertise can provide users with better quality products and services.
SL-CV-B3 Mattress Covering Machine
is used for filling the cover of foam mattress and covering other similar mattress products by plastic. Adopted mode of belt conveyor, combined with the input table with motor and the output table without motor to finish the covering process. Both height adjustment and width adjustment are adopted electrical control, and also with the guide device driven by cylinders to make the covering mattress straight on the input table, make sure the mattress can be conveyed into the conveyor belts and cantilever arms straightly and smoothly. The operation of this machine is very simple because of the advanced programmable logical controller and the touch panel. This machine takes the advantages below: stable performance, easy operation, smooth conveying, steady running, high efficiency, low noise and so on.
Model | SL-CV-B2 |
Main body size | 2760(L)*1170(W)*1690(H)(mm) |
Input table size | 2360(L)*2000(W)*800(H)(mm) |
Output table size | 2360(L)*1200(W)*735(H)(mm) |
Mattress thickness | 100-380(mm) |
Mattress width | 930-2200(mm) |
Arm length | 430mm |
Filling speed | 20m/min |
Total weight | About 1500 kg |
Efficiency | 2 sheets /min |
Total power | 3.4 KW |
Air pressure | 0.6MPa |
We sincerely welcome friends from home and abroad to visit our company to negotiate the price and procurement further our discussion on the later cooperation.
"No the best , Only Better" is our working target, we hope that our expertise can provide users with better quality products and services.
