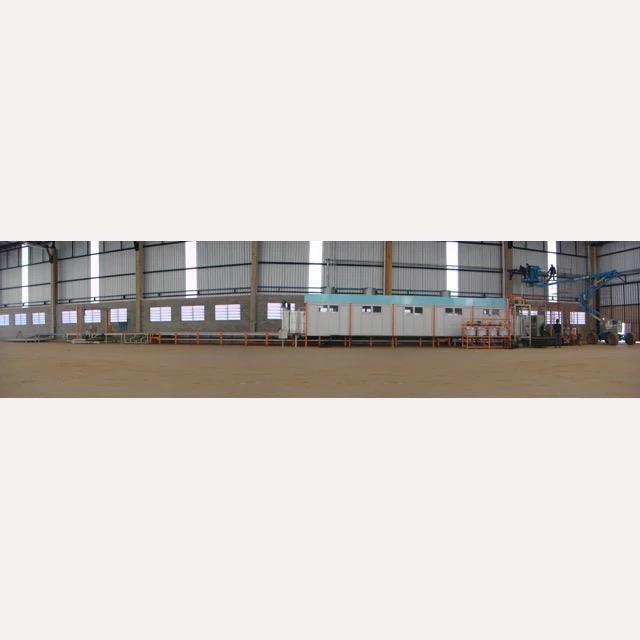

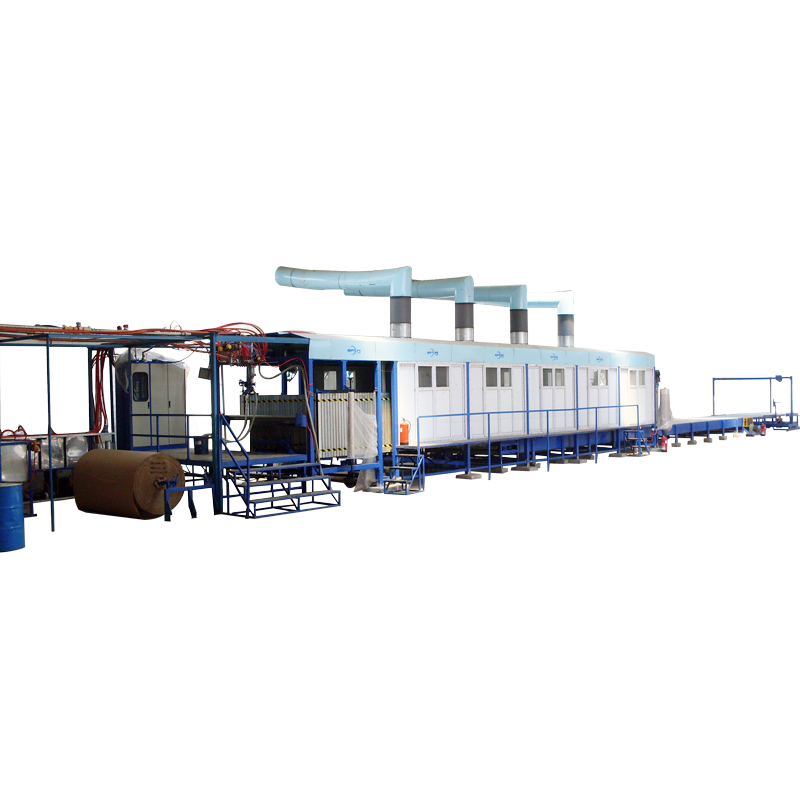

CNC Foam Continuous PU Sponge Foam Making Machine
CNC Continuous Horizontal Foaming Machine can be used for continuousproducing Flexible Polyurethane Foam(maxfoam), which density is 9~50KGS/M³. It can be automatic cutting the foam into difference sizes which is according to client’s requirement. It can be realized numerical control with accurate and convenient ration during the whole production. It becomes more easily and stable to operate the machine.
Computerized control system
It can be realized numerical control during the whole production. It is very easy to operate with its humanization consideration design. It is able to store 100 formulations in advance.
Automatic formulation function
The computer can be automatic to generate formulation for your reference and calculate the dosage of material if you input the density and color which you need. The computer can be automatic to check if the formulation is correct when you give the input of material.
Costing function
The computer can be automatic to display the input of chemical material and the output of foams in each foaming produce.
Printing function
All information including the formulation, the input of chemical material and the output of foams can be printed. The exact data can be used to strengthen management.
Electronic metering system
The metering system is adopted the advance electronic metering pumps fromU.S.A. and the monitoring equipment. Through computer, it can displayformulation’s dosage of 12 groups’ chemical material and actual supply in figure ordiagram. The metering system can be automatic to adjust it with great precisionwhen the actual supplycannot meet the formulation requirement. It is the base toproduce the good foam and to reduce the unnecessary wastage with this function.
High speed mixing system
It adopts two steps mixing with low-pressure and high-speed. This can make thefoam’s air hole fine and smooth. It presets cycle cooling and automatic cleaningfunctions.
Adjustable oven system
The width of two moving side wall can be adjusted for producing differencewidth foam. The height of six steps raising platform can be adjusted for producingdifference density foam.
Automatic cutting system
It is computerized control. It can be changing the cutting length in any time. Thedegree of accuracy can be equal or less than 1mm.
Automatic thermostat apparatus (optional)
It can maintain the suitable temperature of chemical material in order toproducing high quality foam.
Technical Specification:
Model | SL-08FC |
Chemical | 12groups |
Foaming type | Trough foaming/Spray foaming |
Speed of mixing | ≤5000rpm/ min |
Over length | 12.5M |
Fall plate | 6 steps total 6.25M |
Conveyor length | 18M |
Foam width | 1.3-2.25m |
Foam height | ≤1.25M |
Foming speed | ≤8m/min |
Max output | 250kgs/min |
Total power | 38m(L)×4.5m(W)×4m(H) |
Dimension | 38m(L)×4.5m(W)×4m(H) |
We sincerely welcome friends from home and abroad to visit our company to negotiate the price and procurement further our discussion on the later cooperation.
