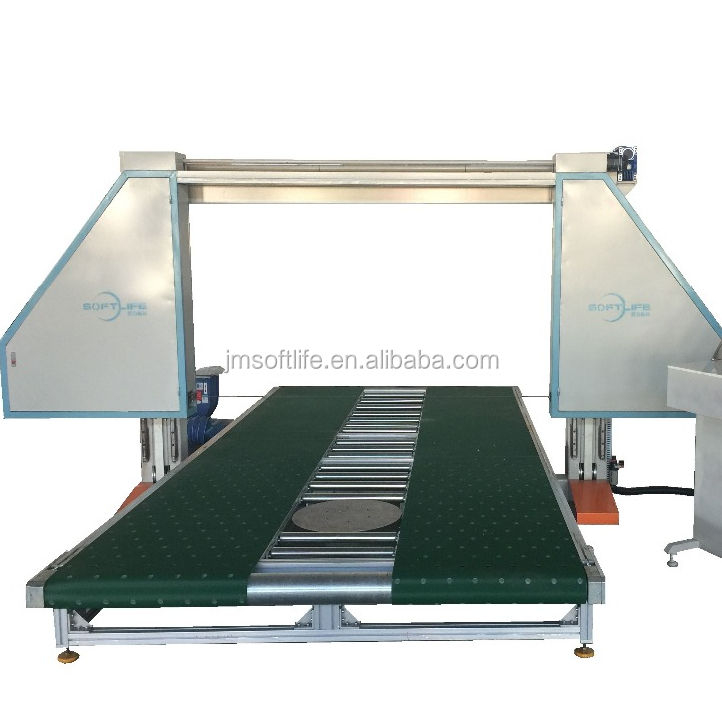

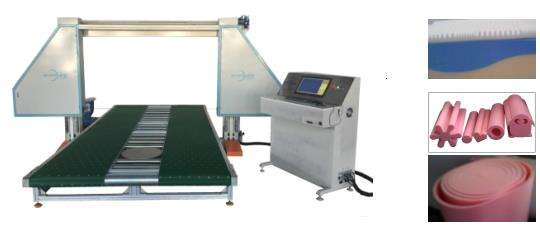

SL-MC CNC Foam Multi - Cutting Machine
- Use the circle blade for cutting. With various cutting functions including contour cutting, peeling,horizontal cutting, vertical cutting and so on.
Drive by high accuracy AC servo motor for accurate and smooth pattern cutting and high efficiency.
Controled by Windows, could be added some drawing programs, or draw by AutoCad, easy operation.
With 360° turning-lifting table
Technical Specification:
Knife type | Circle blade |
Table size | 5050mm x 2150mm |
Max. cutting size | 2500mm×2000mm×1250mm |
Max. vertical cutting speed | 14 m/min |
Max. horizontal cutting speed | 14 m/min |
Cutting precision | ±0.5mm |
Machine size | 5050mm×5050mm×3130mm |
Power | 6 KW +2KW |
Weight | 1600KG |
SL-MC CNC Foam Multi - Cutting Machine
- Use the circle blade for cutting. With various cutting functions including contour cutting, peeling,horizontal cutting, vertical cutting and so on.
Drive by high accuracy AC servo motor for accurate and smooth pattern cutting and high efficiency.
Controled by Windows, could be added some drawing programs, or draw by AutoCad, easy operation.
With 360° turning-lifting table
Technical Specification:
Knife type | Circle blade |
Table size | 5050mm x 2150mm |
Max. cutting size | 2500mm×2000mm×1250mm |
Max. vertical cutting speed | 14 m/min |
Max. horizontal cutting speed | 14 m/min |
Cutting precision | ±0.5mm |
Machine size | 5050mm×5050mm×3130mm |
Power | 6 KW +2KW |
Weight | 1600KG |
