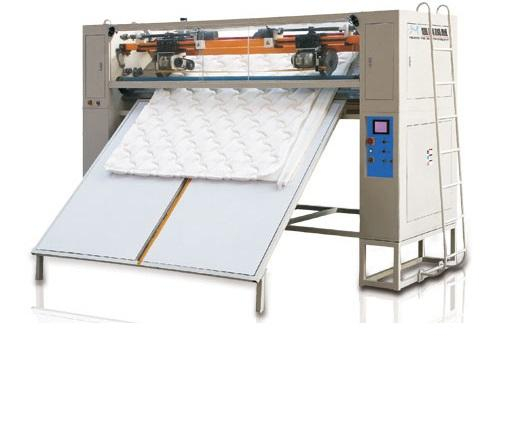

SL-PN PanelCutting Machine
Function range: Slittering, Margin trim, Cross cut..
Technical Specification:
Range | The max X dimension | The min X dimension | |
Trim margin | 2400mm | 1050mm | |
Slitters | 2450mm | 40mm | |
Range | The max Y dimension | The min Y dimension | |
Cross cut | 2500mm | 800mm | |
Cutting thickness | 3-80mm | ||
Cutting width | 160-2500mm | ||
Speed of cutting | 7.5m/min | ||
Power | 2KW | ||
Dimension | 3750x 1300x2365mm | ||
Length of slanting board | 2050mm | ||
Voltage | 380V/220V | ||
Air pressure | 0.4-0.8KGS/cm3 | ||
Weight | 1500kg | ||
