Polyurethane foam spray foaming machinery  CNC continuous sponge production line



Continuous polyurethane foaming machinery is improved base on SL-FCII. Besides good shape and utility, its

humanization consideration design, let you easy to operate.

*addition safe doors and viewing windows on two sides.

*addition passageway for viewing on two sides.

*more humanization design of operation interface.

*more powerful computerized function.

*be able to store 100 formulations in advance.

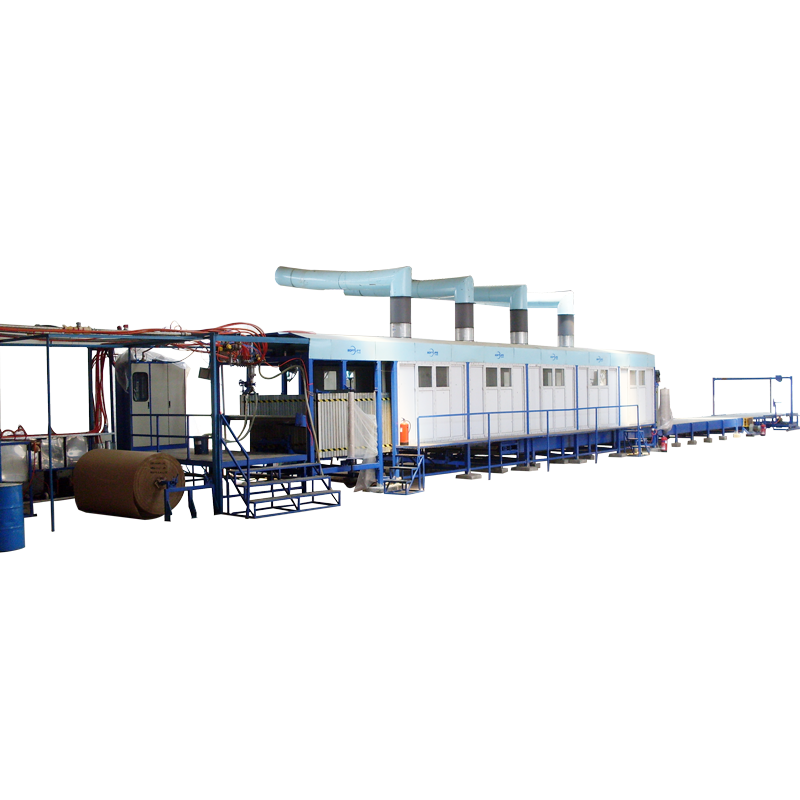

This machine can be used for continuous producing Flexible Polyurethane Foam

(maxfoam), which density is 9~50KGS/M³. It can be automatic cutting the foam into

difference sizes which is according to client’s requirement. It can be realized

numerical control with accurate and convenient ration during the whole production.

It becomes more easily and stable to operate the machine.

Computerized control system

It can be realized numerical control during the whole production. It is very easy to

operate with its humanization consideration design. It is able to store 100

formulations in advance.

Automatic formulation function

The computer can be automatic to generate formulation for your reference and

calculate the dosage of material if you input the density and color which you need.

The computer can be automatic to check if the formulation is correct when you give

the input of material.

Costing function

The computer can be automatic to display the input of chemical material and the

output of foams in each foaming produce.

Printing function

All information including the formulation, the input of chemical material and the

output of foams can be printed. The exact data can be used to strengthen

management.

Electronic metering system

The metering system is adopted the advance electronic metering pumps from

U.S.A. and the monitoring equipment. Through computer, it can display

formulation’s dosage of 12 groups’ chemical material and actual supply in figure or

diagram. The metering system can be automatic to adjust it with great precision

when the actual supply cannot meet the formulation requirement. It is the base to

produce the good foam and to reduce the unnecessary wastage with this function.

High speed mixing system

It adopts two steps mixing with low-pressure and high-speed. This can make the

foam’s air hole fine and smooth. It presets cycle cooling and automatic cleaning

functions.

Adjustable oven system

The width of two moving side wall can be adjusted for producing difference

width foam. The height of six steps raising platform can be adjusted for producing

difference density foam.

Automatic cutting system

It is computerized control. It can be changing the cutting length in any time. The

degree of accuracy can be equal or less than 1mm.

Automatic thermostat apparatus (optional)

It can maintain the suitable temperature of chemical material in order to

producing high quality foam.

Main data
Chemical	12groups
Foaming type	Trough foaming/Spray foaming
Speed of mixing	≤5000rpm/min
Over length	12.5M
Fall plate	6 steps total 6.25M
Conveyor length	16M
Foam width	1.3-2.25m
Foam height	≤1.25M
Foming speed	≤8m/min
Max output	250kgs/min
Total power	70.85KW
Dimension	38m(length)×4.5m(width)×4m(height)
