Polyurethane is one of the most versatile materials in modern manufacturing. From mattresses and car seats to insulation panels and shoe soles, it shows up almost everywhere. The reason? A well-configured polyurethane molding machine can produce components with a wide range of densities, hardness levels, and shapes—all from the same base chemistry.
But getting the process right takes more than just mixing two chemicals together. The equipment matters enormously. Choose the wrong machine, and you end up with inconsistent foam density, defective parts, or excessive material waste. Get it right, and you can produce high-quality polyurethane foam products at scale, reliably and efficiently.
This guide covers three essential areas: the nature of polyurethane foam, how polyurethane molding machines work, and what to look for when evaluating polyurethane equipment manufacturers.
Polyurethane foam forms through a chemical reaction between two liquid components: a polyol and an isocyanate. When these two substances combine—often with the addition of catalysts, surfactants, and blowing agents—they react rapidly, expand, and solidify into a foam structure. The specific properties of the final product depend heavily on the ratio of ingredients, reaction speed, and temperature conditions during processing.
There are two main categories of polyurethane foam used in industrial production:
Flexible foam is soft, open-celled, and compressible. It springs back after being compressed, making it the material of choice for furniture cushions, mattress cores, automotive seating, and packaging inserts. The global flexible foam market is substantial—the mattress industry alone relies on millions of cubic meters of flexible polyurethane foam each year.
Rigid foam is closed-celled and dense. It doesn't compress easily, which makes it an excellent thermal insulator. Rigid polyurethane foam is widely used in refrigerators, freezer panels, building insulation boards, and structural components. Its thermal resistance performance is among the best of any commercially available insulation material.
Property | Flexible PU Foam | Rigid PU Foam |
|---|---|---|
Cell structure | Open-cell | Closed-cell |
Density range | 15–80 kg/m³ | 30–200 kg/m³ |
Primary applications | Mattresses, furniture, seating | Insulation panels, refrigeration |
Compressibility | High | Low |
Thermal insulation | Low | High |
Typical hardness (ILD) | 10–80 N | N/A (rigid) |
Understanding which type of foam you need is the starting point for selecting the right molding machine and configuring the correct chemical formulation.

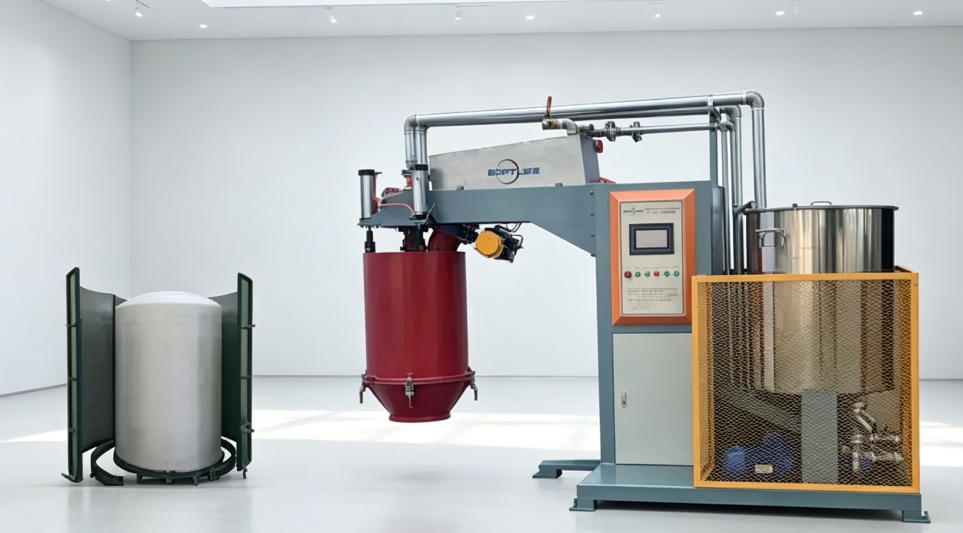

A polyurethane molding machine—also called a PU foaming machine or PU dispensing machine—automates the process of mixing and delivering polyurethane components into a mold cavity. The machine controls the mix ratio, output rate, and injection pressure to ensure consistent results across every production cycle.
Storage tanks: Hold the polyol and isocyanate components at controlled temperatures. Temperature stability is critical because viscosity changes with heat, which directly affects mix quality.
Metering pumps: Precisely dispense each component at a set ratio. Even a small deviation in the polyol-to-isocyanate ratio can change the foam's density, strength, and cure time.
Mixing head: The heart of the machine. High-pressure machines use impingement mixing (the two streams collide at high velocity), while low-pressure machines use mechanical mixing through a rotating element.
Mold or trough: The cavity where the mixed liquid is deposited and allowed to expand and cure.
Choosing between high-pressure and low-pressure systems is one of the most important decisions in PU molding:
High-pressure machines operate at pressures of 100–200 bar. They produce a more thorough mix with minimal waste, are self-cleaning (the mixing head purges itself after each shot), and are well-suited to complex or closed molds. These systems are common in automotive and appliance manufacturing.
Low-pressure machines operate at pressures below 30 bar. They use mechanical agitation to mix the components and are simpler to operate and maintain. They work well for open-mold applications such as continuous foam slabstock production and simpler component molding.
Batch foaming machines produce foam in individual blocks or slabs. Each cycle fills a mold box, the foam rises and cures, and the block is then ejected for cutting. These are widely used in mattress and furniture foam production.
Continuous foaming machines pour a steady stream of mixed PU material onto a moving conveyor, allowing foam to rise continuously and be cut into slabs downstream. CNC continuous foaming machines offer precise control over output and density.
Vacuum foaming machines create negative pressure inside the mold during the foaming process. This helps the foam expand more uniformly, reduces surface defects, and allows production of lower-density foam without sacrificing structural integrity. Auto vacuum foaming machines with top-pressing devices are particularly effective for producing consistent mattress foam blocks.
Injection molding machines inject mixed PU material directly into closed molds under pressure. This method is ideal for producing shaped components—shoe soles, automotive armrests, helmet liners, and other molded parts—where dimensional precision is required.
Chemical preparation — Polyol and isocyanate are loaded into separate temperature-controlled tanks. Additives such as catalysts, flame retardants, or colorants are blended into the polyol component.
Metering — Pumps deliver each component to the mixing head at a precisely controlled ratio (typically between 1:1 and 1:4 depending on the formulation).
Mixing — The two streams combine in the mixing head, initiating the chemical reaction.
Injection or pouring — The reactive mixture is injected into a closed mold or poured into an open trough or mold box.
Foaming and curing — The mixture expands as gas bubbles form, filling the mold cavity. Curing time varies from seconds to several minutes depending on formulation.
Demolding — The finished part or foam block is removed from the mold once it has developed sufficient structural integrity.
Post-processing — Foam blocks are typically cut, shaped, or bonded in subsequent production steps.
Selecting the right polyurethane equipment manufacturer is as important as selecting the right machine type. A poorly built machine produces poor foam—regardless of how good the chemical formulation is. Here's what to evaluate when comparing suppliers.
A reputable manufacturer should offer a full range of equipment to cover different production scales—from semi-automatic batch machines for small operations to fully automated CNC continuous foaming lines for large factories. The ability to supply complementary equipment (foam cutting machines, gluing machines, conveyors) from the same manufacturer simplifies integration and after-sales support.
Modern polyurethane molding machines should include:
PLC (programmable logic controller) systems for automated process control
Digital flow meters for real-time monitoring of component ratios
Temperature regulation systems for tanks and molds
CNC controls for programmable output across different foam formulations
The more precise the control system, the more consistent the foam output—and the less material waste per production run.
Foam production lines run continuously. When a machine goes down, every hour of downtime affects output. Prioritize manufacturers that offer 24/7 technical support, readily available spare parts, and remote diagnostics capabilities. Ask potential suppliers about their service response times and whether they have technicians available in your region.
Manufacturers with established export records have typically adapted their machines to meet international electrical standards, safety certifications, and customs documentation requirements. A supplier exporting to multiple regions—Southeast Asia, the Middle East, Europe, South America, and Africa—has generally demonstrated the reliability needed to serve global buyers.
Before placing a large order, request either a factory visit or video documentation of your specific machine running at full production capacity. Reputable manufacturers test every machine before shipment to confirm it meets specifications. This step significantly reduces the risk of receiving equipment that doesn't perform as described.
Selecting a polyurethane injection molding machine comes down to three aligned decisions: knowing your foam type, matching your machine configuration to your production requirements, and partnering with a manufacturer that can support your operation over the long term.
Flexible foam for mattresses demands different equipment than rigid foam for insulation panels. Batch production requires different automation logic than continuous output lines. And a manufacturer with strong technical depth will add more value than one competing purely on price.
The polyurethane foam industry continues to grow, driven by demand in furniture, construction, automotive, and specialized industrial applications. Producers who invest in well-configured, precision-built molding equipment are better positioned to meet that demand consistently—and to scale when the market requires it.
